Q235 / 35# Rail Road Spikes / Railway Dog Spike ISO898-1 UIC864-1

China Q235 / 35# Rail Road Spikes / Railway Dog Spike ISO898-1 UIC864-1 supplier
Q235 / 35# Rail Road Spikes / Railway Dog Spike ISO898-1 UIC864-1 supplier Q235 / 35# Rail Road Spikes / Railway Dog Spike ISO898-1 UIC864-1 supplier Q235 / 35# Rail Road Spikes / Railway Dog Spike ISO898-1 UIC864-1 supplier Q235 / 35# Rail Road Spikes / Railway Dog Spike ISO898-1 UIC864-1 supplier

Large Image :  Q235 / 35# Rail Road Spikes / Railway Dog Spike ISO898-1 UIC864-1

Product Details:

Place of Origin: China
Brand Name: ZHONGYUE
Certification: ISO9001
Model Number: OEM

Payment & Shipping Terms:

Minimum Order Quantity: 1.0 Tonnes
Price: depends on your material / grade / surface / quantity
Packaging Details: 25Kg plastic bags and wooden pallets or according to clients' requirement
Delivery Time: about 30 work days after getting payment
Payment Terms: L/C, T/T
Supply Ability: 600,000 pcs per month
Contact Now
Detailed Product Description
Product Name: Railway China Supplier Lock Spike Rail Track Spikes Certificate: ISO9001, SGS
Grade: 4.6, 4.8, 5.6, Material: Q235 / 35#
Surface: Zinc, HDG Standard: ISO898-1, UIC864-1, And NF F500-50
Warranty: Two Years

ZhongYue railway China supplier lock spike rail track spikes







Introduce

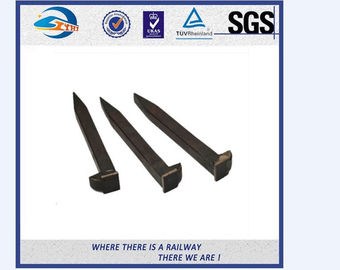

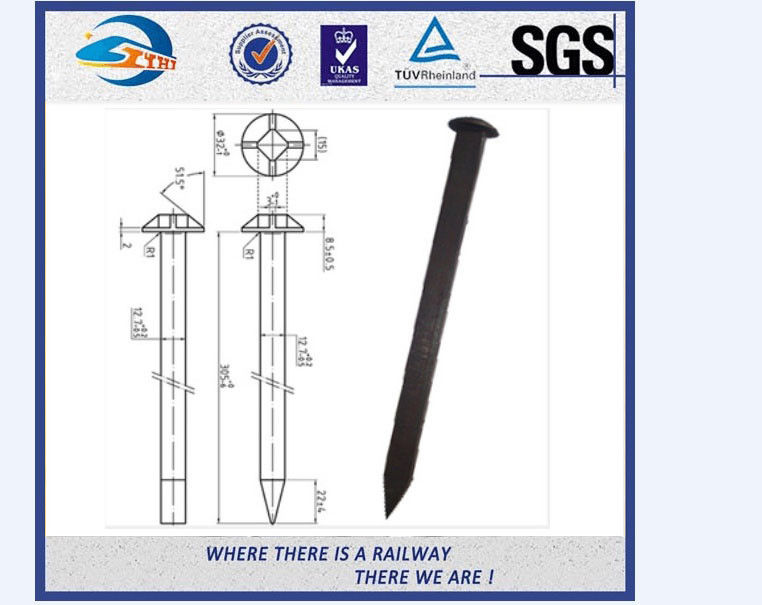

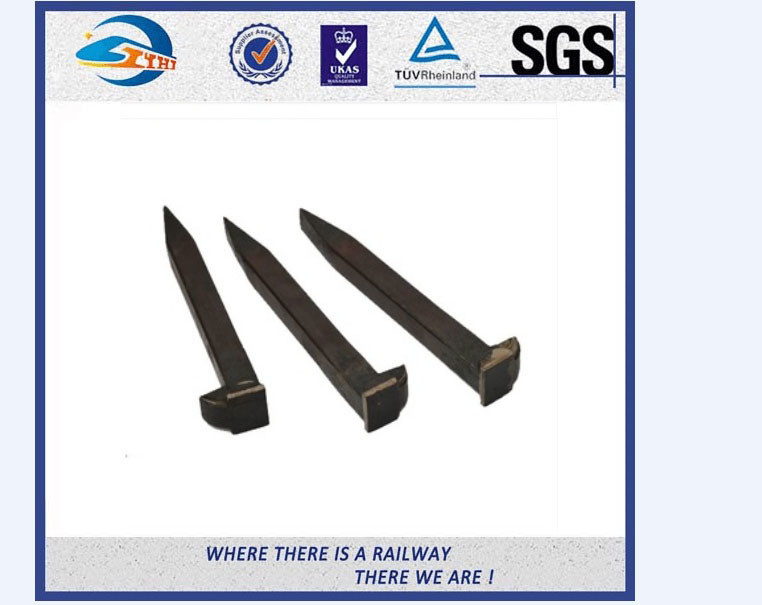

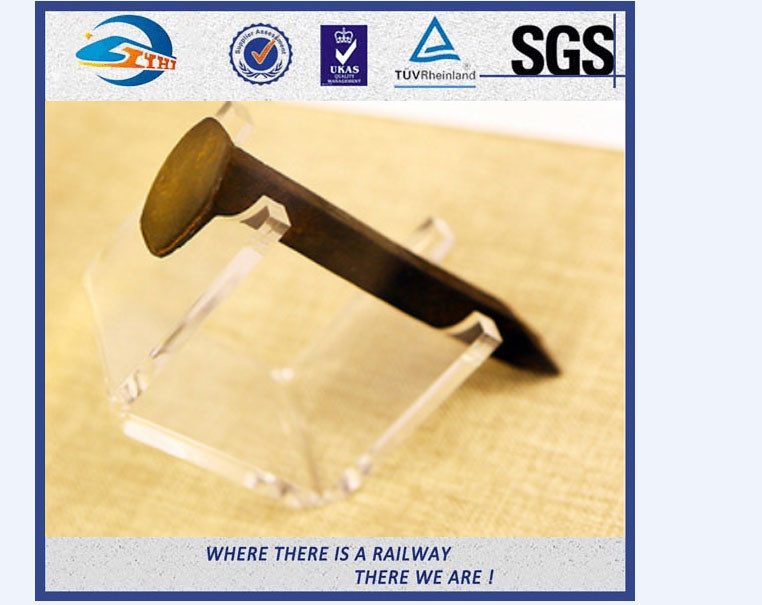

Railway dog spike is a large nail with an offset head that is used to secure rails and base plates to the sleepers in track.





Description



Grade 4.6 5 .6 8.8
Material Q235 35# 45#
Mechanical Tensile strength: ≥ 400Mpa Tensile strength: ≥ 500Mpa

Tensile strength:

≥ 800Mpa

Yield strength: ≥ 240Mpa Yield strength: ≥ 300Mpa Yield strength: ≥ 640Mpa
Elongation: ≥ 22% Elongation: ≥ 20% Elongation: ≥ 12%
Cold bending: 90 degree
without crack
Surface plain (oiled) , Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing
Standard refers ISO898-1, UIC864-1, and NF F500-50







Note (4.8 as a sample)

the first 4: tensile strength of material Q235 is 400MPa;

the second 0.8: the yield ratio is 0.8;

the yield strength of material Q235 is 400MPa x 0.8 =320 MPa.

MOQ: 1.0MT per model
Packing: 25Kg plastic bags and wooden pallets or according to clients' requirement





Process

  1. Raw material
  2. Cutting
  3. Head forming
  4. Heat treatment
  5. Surface treatment
  6. Final inspection
  7. Packing
  8. Shippment.





Surface Treatment

  1. galavazing
  2. DHG
  3. plain (oiled)
  4. color paint
  5. oxide Black





Inspection machine

  1. Brinell Hardness Tester
  2. Carbon and Sulfur Analyzer
  3. Rockwell Hardness Machine
  4. Automatic Impact Testing Machine
  5. Metallographic Microscope
  6. Automatic High-speed Analyzer
  7. Fatigue Testing Machine
  8. Metallographic Specimen Polishing Machine
  9. Metallographic Specimen Pointing Machine

Q235 / 35# Rail Road Spikes / Railway Dog Spike ISO898-1 UIC864-1



Q235 / 35# Rail Road Spikes / Railway Dog Spike ISO898-1 UIC864-1
