35K 45# 40Mn2 Railway Sleeper Screws Railroad Spike 4.6 Grade

Basic Information
Place of Origin: Kunshan City, Jiangsu Province, China
Brand Name: ZHONGYUE
Certification: SGS, TUV, ISO9001:2008
Model Number: OEM
Minimum Order Quantity: 5000 pcs
Price: USD 0.3-1.0 / Pc
Packaging Details: 25KG double-layer woven bag with fumigation-free wooden pallet
Delivery Time: 30 Days after placing formal order
Payment Terms: T/T, L/C
Supply Ability: 1500 Tons / Month
Product: Railway Fasteners Stud Screw Spike Railroad Screw Spike 4.6 Grade Material: Q235, 35K, 45#, 40Mn2, 20MnSi
Color: Black, White Or Yellow Sample: Available
Appliaction: In Rail Sleeper To Fasten Rails Certificate: ISO9001, SGS
Warranty: Two Years
High Light:

railway sleeper fixing screws

,

black oxide screws

ZhongYue Railway Fasteners Stud Screw Spike Railroad Screw Spike 4.6 Grade





1. Introduce:

Railroad screws spikes provide a mechanical interlock that delivers more than twice the holding power of conventional hammered railway spikes. Screw spikes are commonly used to fasten timber railway ties/sleepers; however, they can also be used in conjunction with plastic ferrules that have been cast into concrete ties/sleepers. Various thread profiles, lengths, diameters and drive heads are available to suit specific geographic requirements and SUYU can help with product specification and selection



2. Specification:

Product name Square head screw spike
Type Ss series
Standard UIC, DIN, BS, ASTM, etc
Grade 4.6, 4.8, 5.6, 8.8, 10.9, 12.9, etc
Raw material Q235, 35K, 45#, 40Mn2, 20MnSi
Surface Plain (oil), zinc, hdg, black, etc
Package woven bag+ free fumigation wooden pallet





3. Advantage:

Our products are mainly made through hot forging.
The threads of rail screw spikes are made by hot rolling with special threading machines.
We produce metric threads, BS, BSW, TR thread, or round threads.

We also make rail fastenings for crane rail and elevator guide rail, along with other related products. We manufacture according to GB/TB (Chinese national standards and railway standards), AREA, UIC, BS, DIN, ASTM, and AS standards.





4. Order Hints:

MOQ: based on your product

Delivery time:Within 30days after order confirmed

Shipment: sea freight

Payment term: T/T 30% deposit, balance before shipment; LC





5. Our product range:

1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.
2. Rail clip/ Tension clamp/ E, R, SKL clip/ DP clip/ Deenik clip
3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts
4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad
5. Fish plate / Joint bar / Rail joint/ Splice Bar
6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt
7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip
8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers
9. Plastic dowel / Guide plate/ Nylon insert


6. Photos for Reference

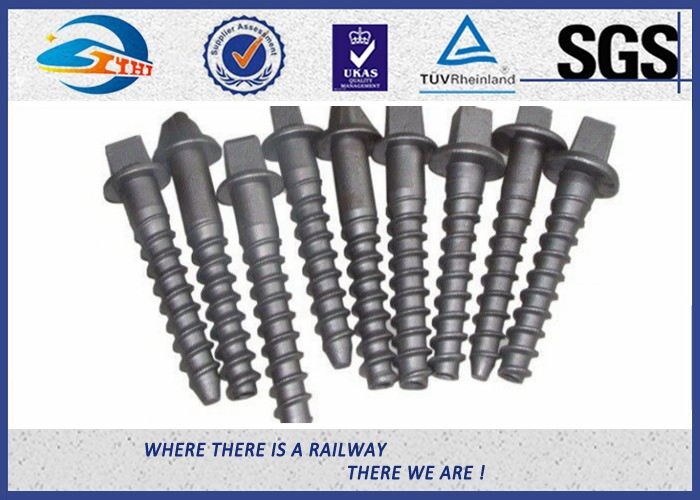

35K 45# 40Mn2 Railway Sleeper Screws Railroad Spike 4.6 Grade 0

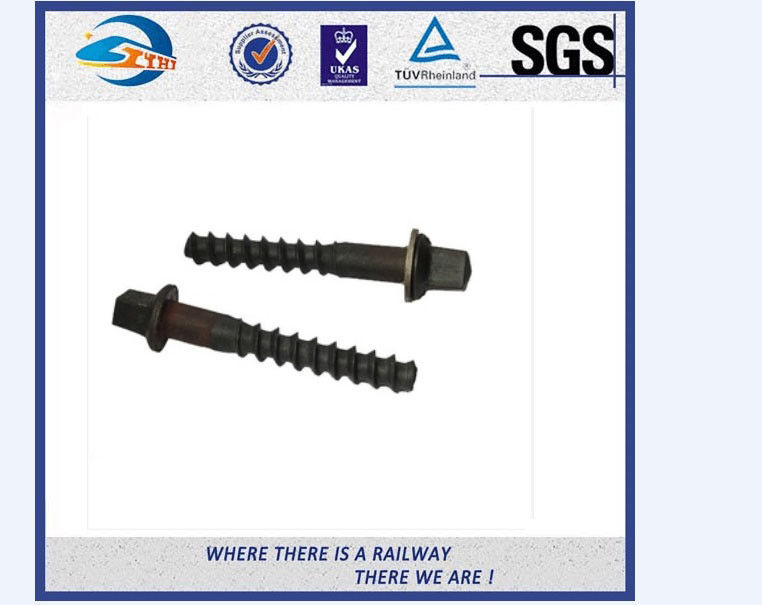

35K 45# 40Mn2 Railway Sleeper Screws Railroad Spike 4.6 Grade 1
