| Place of Origin: | China |
|---|---|
| Brand Name: | ZhongYue |
| Certification: | ISO9001:2015 |
| Model Number: | OEM |
| Minimum Order Quantity: | 10000pcs |
| Price: | Negociable |
| Packaging Details: | 25KG double-layer woven bag with fumigation-free wooden pallet |
| Delivery Time: | 15-30 Days after placing formal order |
| Payment Terms: | T/T, 30% in advance |
| Supply Ability: | 1000 Tons / Month |

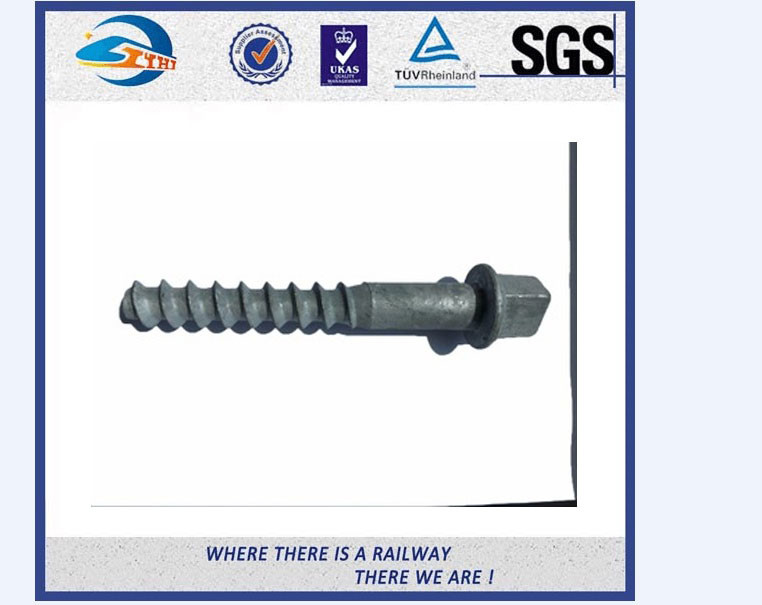

| Product: | Self Trapping Screw Spikes Track For Railway And Mining Sleeper | Material: | Carbon Steel 35# |
|---|---|---|---|
| Color: | Black, White Or Yellow | Sample: | Available |
| Appliaction: | In Rail Sleeper To Fasten Rails | Test Report: | Available |
| High Light: | stainless steel coach screws,railway sleeper fixing screws |
||
Railway screw spikes provide a mechanical interlock that delivers more than twice the holding power of conventional hammered railway spikes.
Screw spikes are commonly used to fasten timber railway ties/sleepers; however, they can also be used in conjunction with plastic ferrules that have been cast into concrete ties/sleepers.
Various thread profiles, lengths, diameters and drive heads are available to suit specific geographic requirements and Zhongyue can help with product specification and selection
2. Specification:
| Diameter | Length | Head Diameter | Head Height | Head Button Height | Head Washer Height | Head Overall Height | Head Width | Head Length | Thread Length Nominal |
|---|---|---|---|---|---|---|---|---|---|
| 11/16" | 6-3/4" | 2" | 23/32" | 1/8" | 1/4" | 31/32" | 7/8" | 7/8" | 4-5/8" |
| Diameter | Length | Head Diameter | Head Height | Head Button Height | Head Washer Height | Head Overall Height | Head Width | Head Length | Thread Length Nominal |
|---|---|---|---|---|---|---|---|---|---|
| 11/16" | 6-3/4" | 2" | 1-1/8" | 1/8" | 13/32" | 1-1/8" | 7/8" | 7/8" | 5-3/8" |
| Diameter | Length | Head Diameter | Head Height | Head Button Height | Head Washer Height | Head Overall Height | Head Width | Head Length | Thread Length Nominal |
|---|---|---|---|---|---|---|---|---|---|
| 11/16" | 6-3/4" | 2" | 23/32" | 1/8" | 13/32" | 1-1/4" | 27/32" | 1-1/8" | 4-5/8" |
| Brand | ZY | |||
| Type | Ss5.-150 | V20-135 | ||
| Ss8-140 | V23-115 | |||
| Ss8-150 | V23-135 | |||
| Ss8-160 | V23-155 | |||
| Ss23-160 | V23-215 | |||
| Ss25.-165 | V26-115 | |||
| Ss35.-161 | ||||
| Or the type by customers’ drawings | ||||
| Grade | 4.6 | 5.6 | 8.8 | 10.9 |
| Material | Q235 | 35# | 45# | 40Cr |
|
Mechanical |
Tensile strength: |
Tensile strength: |
Tensile strength: |
Tensile strength: |
|
Yield strength: |
Yield strength: |
Yield strength: |
Yield strength: |
|
| Elongation:≥22% | Elongation:≥20% | Elongation:≥12% | Elongation:≥9% | |
|
Cold bending: |
Cold bending: |
Cold bending: |
Cold bending: |
|
| Surface | plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing | |||
|
Standard |
ISO898-1, UIC864-1, and NF F500-50 | |||
4. Our advantage:
Our products are mainly made through hot forging.
The threads of rail screw spikes are made by hot rolling with special threading machines.
We produce metric threads, BS, BSW, TR thread, or round threads.
We also make rail fastenings for crane rail and elevator guide rail, along with other related products. We manufacture according to GB/TB (Chinese national standards and railway standards), AREA, UIC, BS, DIN, ASTM, and AS standards.
5. Our product range:
