UIC864-1 DIN17221 BS970 GB / T1222 SKL Type Railway Fastening System

Basic Information
Place of Origin: China
Brand Name: ZhongYue
Certification: ISO9001:2015
Model Number: Rail Fastening System
Minimum Order Quantity: 10000sets
Price: Negociable
Packaging Details: according to clients' requirement
Delivery Time: 30 working days after received your payment
Payment Terms: T/T, 30% in advance
Supply Ability: 500,000pcs per month
Product Name: UIC864-1 DIN17221 BS970 GB / T1222 SKL Type Railway Fastening System Application: Railway
Type: SKL Type Sample: Available
Surface: Plain (oiled), Oxide Black, Zinc, HDG, Wax, Bitumen, Dacromet Standard Refers: DIN17221, BS970, GB/T1222
Material: Q235(main) 60Si2MnA, 60Si2CrA, 55Si2Mn, 38Si7 Certification: ISO9001:2008
High Light:

railroad fasteners

,

vossloh fastening system

UIC864-1 DIN17221 BS970 GB / T1222 SKL Type Railway Fastening System

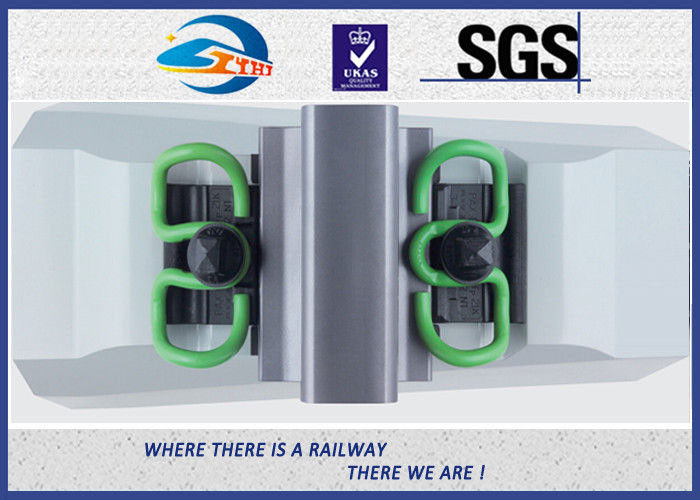

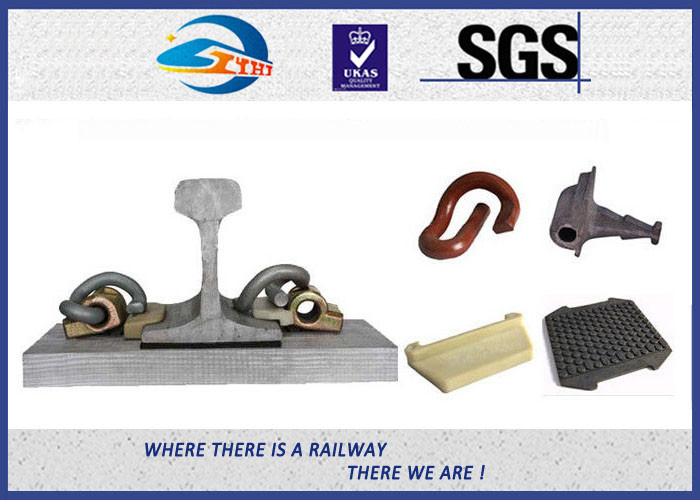

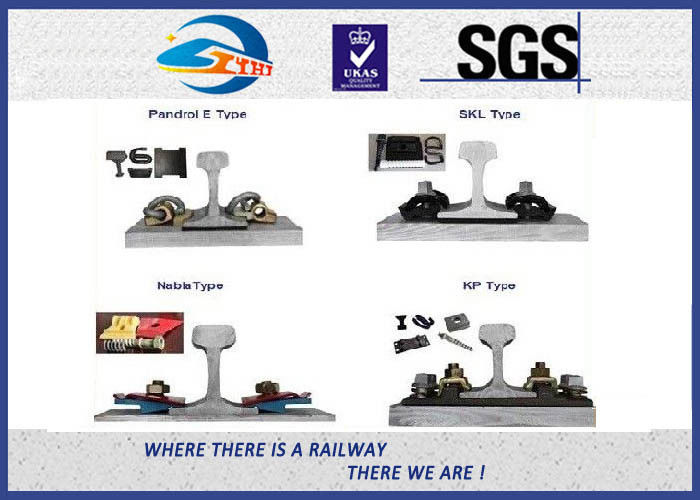

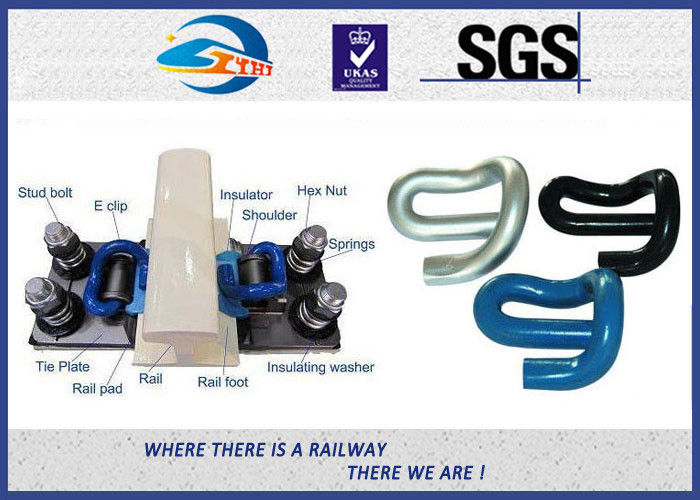

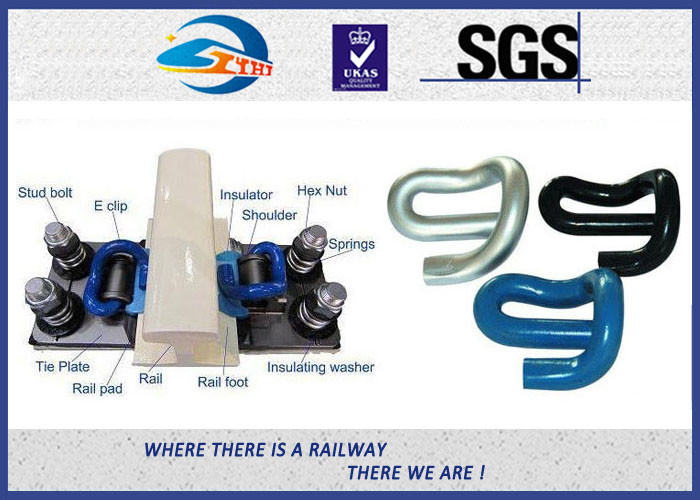

As an important part of E-clip fastening system, elastic rail clips are used with concrete railway sleepers to fasten rails on both sides. The rail clips are usually made of forged spring steel, which are manufactured by hot forging process. The forged elastic rail clips are considered to be better than other metal forming processes due to most uniform microstructure. There are several types of railway fasteners. Elastic rail clips are in a category called elastic fasteners. They can be engaged in line with the rail in E-clip fastening, or called fast clip fastening system. Both serve very well in attaching the rail track to the base plate and most importantly controlling those longitudinal forces. In this article we will give you a detailed introduction to Elastic rail clips.



SKL Clip Rail Fastening System

Part name

Type

Material

Finish

Remark

SKL14

tension clip

Dia. 13mm

60Si2CrA, 38Si7

Plain oiled,

color painting,

or the other

 required ones.

Hardness: 42-47HRC
Fatigue test: When the clip spring

deflection reaches 9.1mm

and the swing deflection is 1.42mm,

 the fatigue life will be 5 millions

cycles without breaking.
Standard: DIN17221, GB/T1222

Ss35

screw spike

M24×150mm
M24 ×160mm
M24×180mm

Grade 4.6: Q235
Grade 5.6: 35#
Grade 8.8: 45#

Plain oiled, black

oxide, galvanized,

hot dip galvanized,

 Dacromet

 and sherardized

Standard: ISO898-1,

UIC864-1 and NF F500-50

Plain washer

Uls7

Q235

Plain oiled, black

 oxide, galvanized,

hot dip galvanized,

 Dacromet and

 sherardized

Standard: EN10025, EN10139

Plastic dowel

For different

sizes of

screw spike

HDPE,

Reinforced

Nylon 66 (PA66)

Black, blue,

yellow, green

 or other color

For insert into concrete sleeper

Guide plate

UIC54, UIC60,

50kg rail,

 60kg rail,

 and other sizes

as ordered

Reinforced

Nylon 66

 (PA66)

Black, blue,

yellow, green

or other color

Different designs are available.

Rail pad

UIC54,UIC60,

and size

 as ordered

EVA, or rubber

Black, blue,

yellow, green

or other color

Different designs are available.





The fist rail fastening system is firstly developed in Sweden. This rail fastening system is widely used in

the railroad in South Africa, Zimbabwe, Botswana, Swaziland and Namibia. In addition, the railroad

fastener is extensively employed in South America and Australia.



The fist rail fastening system comprises of spring steel clip, rail pad, and insulated retaining pin. The

components for the rail fastening device are manufactured according to ISO 9001-2008 standard.





Order Hints:

MOQ: based on your product

Delivery time:Within 30days after order confirmed

Shipment: sea freight

Payment term: T/T 30% deposit, balance before shipment; LC





Our product range:

1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.
2. Rail clip/ Tension clamp/ E, R, SKL clip/ DP clip/ Deenik clip
3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts
4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad
5. Fish plate / Joint bar / Rail joint/ Splice Bar
6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt
7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip
8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers
9. Plastic dowel / Guide plate/ Nylon insert
