GOST АРС-4 Russian Elastic Rail Clips For R65 and R75 Rail , Q235 Steel APC Standard

Basic Information
Place of Origin: China
Brand Name: ZhongYue
Certification: ISO9001:2015
Model Number: APC-4
Minimum Order Quantity: 10000pcs
Price: Negociable
Packaging Details: 25kg double-layer bag, 36bags/pallet, 24pallets/container or as your request
Delivery Time: 15 - 30 work days after getting payement
Payment Terms: T/T, 30% in advance
Supply Ability: 500,000 pcs per month
Manufacturer: Zhongyue Railway Material Co.,ltd. Material: Q235
Surface: Plain (oiled), Oxide Black, Color , Galvanized Drawing: Designed From Client
Market: Russia Size: 45.2x30x41
High Light:

spring steel clips

,

railroad clips



GOST АРС-4 Russian Elastic Rail Clips For R65 and R75 Rail , Q235 Steel APC Standard





Technical Parameter Table of Material



Material 60Si2MnA 60Si2CrA 55Si2Mn 38Si7
Chemical composition(%) C:0.56-0.64,  C:0.56-0.64,  C:0.52-0.60,  C:0.35-0.42,
Mn:0.60-0.90,  Mn:0.40-0.70,  Mn:0.60-0.90,  Mn:0.50-0.80,
Si:1.60-2.00,  Si:1.40-1.80, Si:1.50-2.00, Si:1.50-1.80,
Cr:≤0.35,  Cr:0.70-1.00  Cr:≤0.35
P:≤0.03,  P:≤0.03,  P:≤0.03,  P:≤0.03,
S:≤0.03 S:≤0.03 S:≤0.03

S:≤0.03



Hardness 42-47HRC
Fatigue life for Dia.18 is 3 millions cycles without breaking
for Dia.20 is 5 millions cycles without breaking

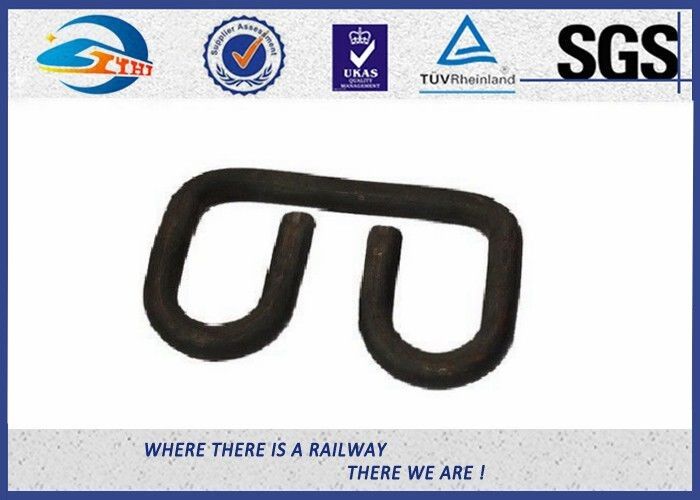

PRODUCT SHOW:





GOST АРС-4 Russian Elastic Rail Clips For R65 and R75 Rail , Q235 Steel APC Standard 0





DRAWING:



GOST АРС-4 Russian Elastic Rail Clips For R65 and R75 Rail , Q235 Steel APC Standard 1








Produce Process




Clip Production Process
1 raw material
2 shearing
3 heating to forging temperature (950-1000 degrees celsius)
4 forming
5 hardening
6 tempering below 350 degrees celsius
7 inspection
8 packing



GOST АРС-4 Russian Elastic Rail Clips For R65 and R75 Rail , Q235 Steel APC Standard 2









Surface Treatment

  1. plain (oiled)
  2. color paint
  3. oxide Black (most choice)
  4. galavazing
  5. DHG

GOST АРС-4 Russian Elastic Rail Clips For R65 and R75 Rail , Q235 Steel APC Standard 3





Package

  1. 25 kg double-layer woven bag with free fumigation wooden pallent
  2. 36bags/pallets
  3. 20pallets/20ft



Similar Elastic Clip



Same series SKL1
SKL2
SKL3
SKL12
SKL14
General series E type
Nabla type
KP / KPO type
Special series PR type
Deenik type
Russian type
Fats clip
Gauge lock clip
