Customized E Type Elastic Rail Clip For Railway System , SGS ISO9001 Approval

China Customized E Type Elastic Rail Clip For Railway System , SGS ISO9001 Approval supplier
Customized E Type Elastic Rail Clip For Railway System , SGS ISO9001 Approval supplier Customized E Type Elastic Rail Clip For Railway System , SGS ISO9001 Approval supplier Customized E Type Elastic Rail Clip For Railway System , SGS ISO9001 Approval supplier Customized E Type Elastic Rail Clip For Railway System , SGS ISO9001 Approval supplier

Large Image :  Customized E Type Elastic Rail Clip For Railway System , SGS ISO9001 Approval

Product Details:

Place of Origin: China
Brand Name: ZHONGYUE
Certification: SGS, ISO9001, TUV
Model Number: E2091

Payment & Shipping Terms:

Minimum Order Quantity: 3 Tons
Price: USD 0.9--1.5 / PC
Packaging Details: 25kg double-layer bag, 36bags/pallet, 24pallets/container or as your request
Delivery Time: 10 - 20 work days after payment
Payment Terms: L/C, T/T
Supply Ability: 200,000 pcs per week
Contact Now
Detailed Product Description
Product: E Type Elastic Rail Clip Material: Spring Steel

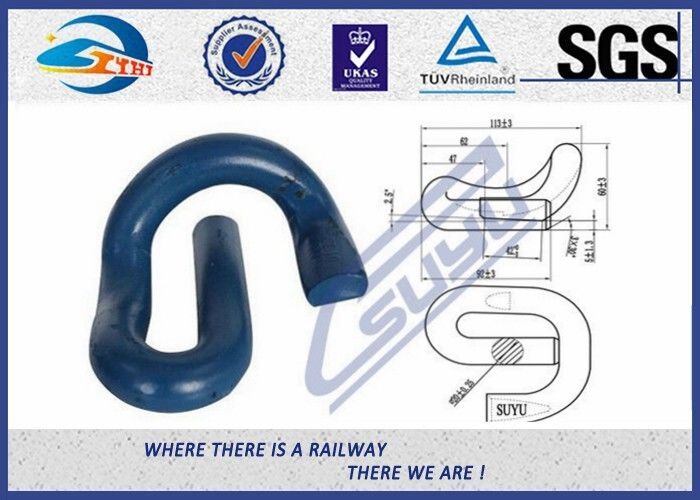

Surface: Plain Oiled, Oxide Black, Painted, Galvanized Drawing: See The Photo
Application: Fastening Rails OEM: Available



Customized E Type Elastic Rail Clip For Railway System , SGS ISO9001 Approval





Commercial Name: E Type Elastic Rail Clip


Brand: Zhongyue

Supplier: Zhongyue Railway Material Co.,ltd.



Address: No#199 Huanlou Road Kunshan Jiangsu P.R China



HS Code: 73029 09000



Customized E Type Elastic Rail Clip For Railway System , SGS ISO9001 Approval





Produce Process



Clip Production Process
1 raw material
2 shearing
3 heating to forging temperature (950-1000 degrees celsius)
4 forming
5 hardening
6 tempering below 350 degrees celsius
7 inspection
8 packing

Customized E Type Elastic Rail Clip For Railway System , SGS ISO9001 Approval







Material Choice: spring steel

  1. 60Si2MnA
  2. 60Si2CrA
  3. 55Si2Mn
  4. 38Si7

Technical Parameter Table of Material

SKL Series SKL1 SKL3 SKL12 SKL14
Material 60Si2MnA 60Si2CrA 55Si2Mn 38Si7
Chemical composition(%) C:0.56-0.64,  C:0.56-0.64,  C:0.52-0.60,  C:0.35-0.42,
Mn:0.60-0.90,  Mn:0.40-0.70,  Mn:0.60-0.90,  Mn:0.50-0.80,
Si:1.60-2.00,  Si:1.40-1.80, Si:1.50-2.00, Si:1.50-1.80,
Cr:≤0.35,  Cr:0.70-1.00  Cr:≤0.35
P:≤0.03,  P:≤0.03,  P:≤0.03,  P:≤0.03,
S:≤0.03 S:≤0.03 S:≤0.03 S:≤0.03
Hardness 42-47HRC
Fatigue life for Dia.18 is 3 millions cycles without breaking
for Dia.20 is 5 millions cycles without breaking





Surface Treatment

  1. plain (oiled)
  2. color paint
  3. oxide black
  4. galavazing
  5. DHG





Inspection machine

  1. Brinell Hardness Tester
  2. Carbon and Sulfur Analyzer
  3. Rockwell Hardness Machine
  4. Automatic Impact Testing Machine
  5. Metallographic Microscope
  6. Automatic High-speed Analyzer
  7. Fatigue Testing Machine
  8. Metallographic Specimen Polishing Machine
  9. Metallographic Specimen Pointing Machine



Package

  1. 25 kg double-layer woven bag with free fumigation wooden pallent
  2. 36bags/pallets
  3. 20pallets/20ft

Customized E Type Elastic Rail Clip For Railway System , SGS ISO9001 Approval

Application

  1. Speed <120km/h
  2. High-way speed >120km/h

Customized E Type Elastic Rail Clip For Railway System , SGS ISO9001 Approval







Other Types



Same series SKL1
SKL2
SKL3
SKL12
SKL14
General series E type
Nabla type
KP / KPO type
Special series PR type
Deenik type
Russian type
Fats clip
Gauge lock clip





Sale Range

  1. Rail fastening system
  2. Dog spike / Screw spike
  3. Bolt set
  4. Elastic clamp
  5. Rail anchor
  6. Rail shoulder
  7. Fish plate
  8. Tie plate
  9. Plastic / Rubber parts
  10. Brake shoe
  11. Steel rail
  12. New wood sleeper



Quotation necessity

  1. Drawing with full size
  2. Material
  3. Surface Treatment
  4. Order quantity



If you have any needs, welcome to contact me.
