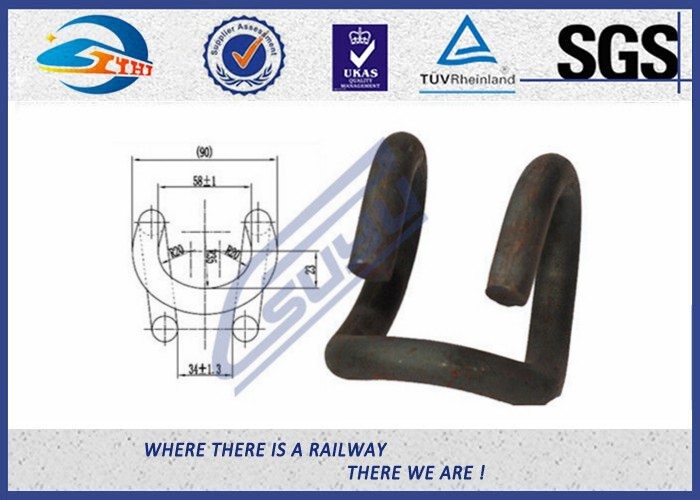

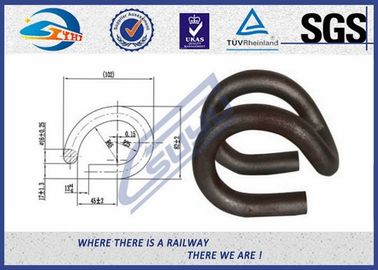

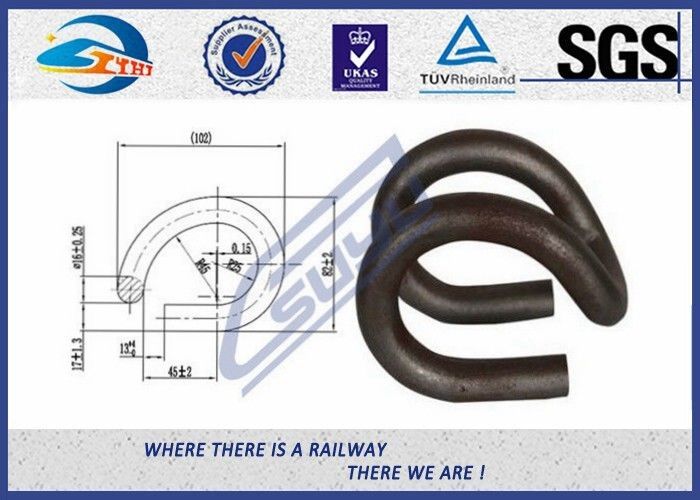

South America Rail Fastening Customized Deenik Clip Spring Steel 60Si2MnA

China South America Rail Fastening Customized Deenik Clip Spring Steel 60Si2MnA supplier
South America Rail Fastening Customized Deenik Clip Spring Steel 60Si2MnA supplier South America Rail Fastening Customized Deenik Clip Spring Steel 60Si2MnA supplier South America Rail Fastening Customized Deenik Clip Spring Steel 60Si2MnA supplier

Large Image :  South America Rail Fastening Customized Deenik Clip Spring Steel 60Si2MnA

Product Details:

Place of Origin: Shanghai, China
Brand Name: ZHONGYUE
Certification: SGS, TUV, ISO9001:2008
Model Number: Based on drawing

Payment & Shipping Terms:

Minimum Order Quantity: 5000 pcs
Price: USD 0.6-1.8 / Pc
Packaging Details: 25KG double-layer woven bag with fumigation-free wooden pallet
Delivery Time: 10-20 Days After Payment
Payment Terms: L/C, T/T
Supply Ability: 10000 Tons / Month
Contact Now
Detailed Product Description
Product: Deenik Clip Material: 60Si2MnA, 60Si2CrA

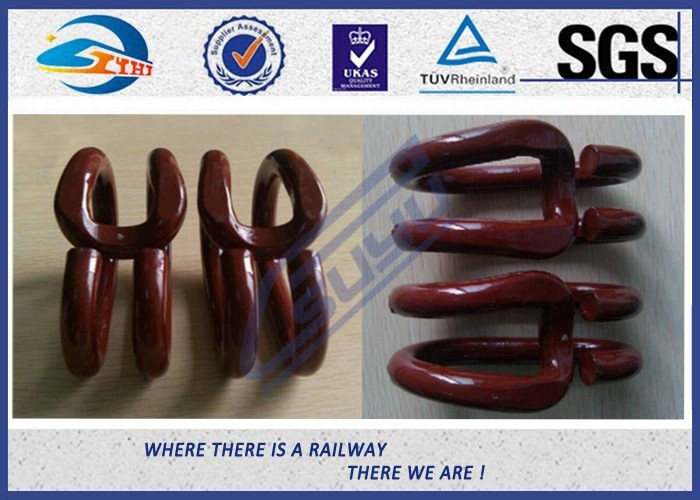

Surface: Plain, Red, Black, Or Customized Application: Rail Fastening
Fatigue Test: 5,000,000 Times Diameter: From 12mm To 20mm

South America Rail Fastening Customized Deenik Clip Spring Steel 60Si2MnA

Railroad Elastic Clip

As a professional manufacturer and supplier of railroad fasteners, with railroad elastic clip  as our most popular products, we also offer elastic clips that are exclusively used in railways. Fabricated with optimum quality raw materials, these elastic rail clips are designed with high precision which impart high tensile strength and corrosion resistance. Our products can also be customized according to clients' requirements.  We produce 1,500-2,000 tons of clips per month for clients both at home and abroad.



Product Features

1. Few, simple components

2. Well Proven globally

3. System can be mechanised

4. Very long life

5. High safety level and security

6. Proven on all types of ballasted track

7. Used in turnouts and crossings

8. Can be supplied in anti-vandal form

9. Virtually maintenance free

10. No threads to strip or corrode

Technical Specification

Brand SUYU
Name Deenik Clip / Railway Clip/ Rail clip / Elastic Rail clip / Tension clamp / Rail clamp
Material 60Si2MnA 60Si2CrA 55Si2Mn 38Si7

Chemical

composition(%)

C:0.56-0.64, Mn:0.60-0.90,

 Si:1.60-2.00, Cr:≤0.35,

P:≤0.03, S:≤0.03

C:0.56-0.64,

Mn:0.40-0.70,

Si:1.40-1.80,

Cr:0.70-1.00

P:≤0.03,

S:≤0.03

C:0.52-0.60,

Mn:0.60-0.90,

 Si:1.50-2.00,

Cr:≤0.35 P:≤0.03,

S:≤0.03

C:0.35-0.42,

Mn:0.50-0.80,

Si:1.50-1.80,

P:≤0.03, S:≤0.03

Hardness For e clip: 44-48HRC
For skl clip: 42-47HRC
Fatigue life for Dia.18 is 3 millions cycles without breaking
for Dia.20 is 5 millions cycles without breaking
Surface plain (oiled), Oxide black, color painting
Standard refers DIN17221, BS970, GB/T1222



Surface Treatment plain (oiled)

  1. color paint
  2. oxide Black (most choice)
  3. galavazing
  4. DHG

Inspection Machine

  1. Brinell Hardness Tester
  2. Carbon and Sulfur Analyzer
  3. Rockwell Hardness Machine
  4. Automatic Impact Testing Machine
  5. Metallographic Microscope
  6. Automatic High-speed Analyzer
  7. Fatigue Testing Machine
  8. Metallographic Specimen Polishing Machine
  9. Metallographic Specimen Pointing Machine



Production Process

South America Rail Fastening Customized Deenik Clip Spring Steel 60Si2MnA

Package

South America Rail Fastening Customized Deenik Clip Spring Steel 60Si2MnA



Application

South America Rail Fastening Customized Deenik Clip Spring Steel 60Si2MnA
