6 Holes Railway Fish Plate For ASCE Tie Rail And Crane Rail fish bolt

Good quality Railway Sleeper Screws for sales
After a comparison of the number of Rail Fastening System, I found that quality of ZY products is better than others. So choose ZY is right.

—— Jim

Recently cooperated with Suzhou Zhongyue,we are very satisfied.Not only their products but their services all very good.

—— Jack

I'm Online Chat Now

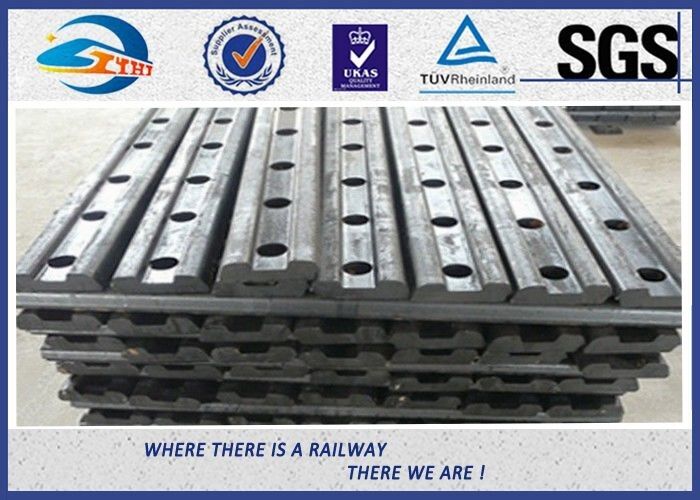

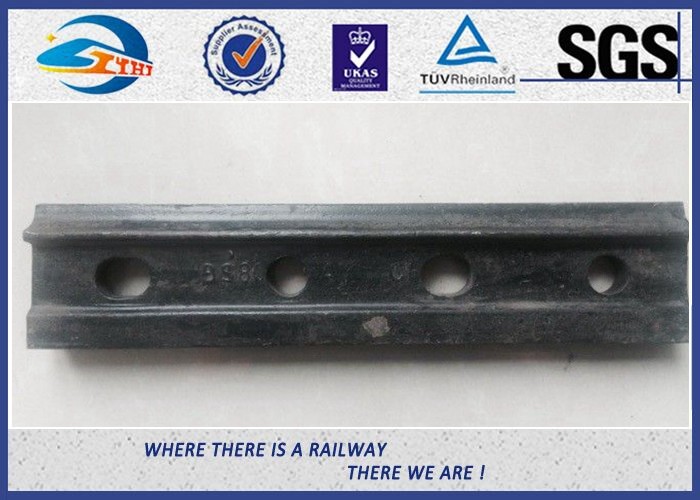

6 Holes Railway Fish Plate For ASCE Tie Rail And Crane Rail fish bolt

China 6 Holes Railway Fish Plate For ASCE Tie Rail And Crane Rail fish bolt supplier
6 Holes Railway Fish Plate For ASCE Tie Rail And Crane Rail fish bolt supplier 6 Holes Railway Fish Plate For ASCE Tie Rail And Crane Rail fish bolt supplier 6 Holes Railway Fish Plate For ASCE Tie Rail And Crane Rail fish bolt supplier 6 Holes Railway Fish Plate For ASCE Tie Rail And Crane Rail fish bolt supplier

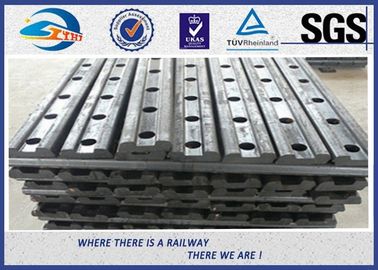

Large Image :  6 Holes Railway Fish Plate For ASCE Tie Rail And Crane Rail fish bolt

Product Details:

Place of Origin: Suzhou, China
Brand Name: ZHONGYUE
Certification: TUV, SGS, ISO9001
Model Number: ASCE

Payment & Shipping Terms:

Minimum Order Quantity: 1,000pcs
Price: USD10 to USD30

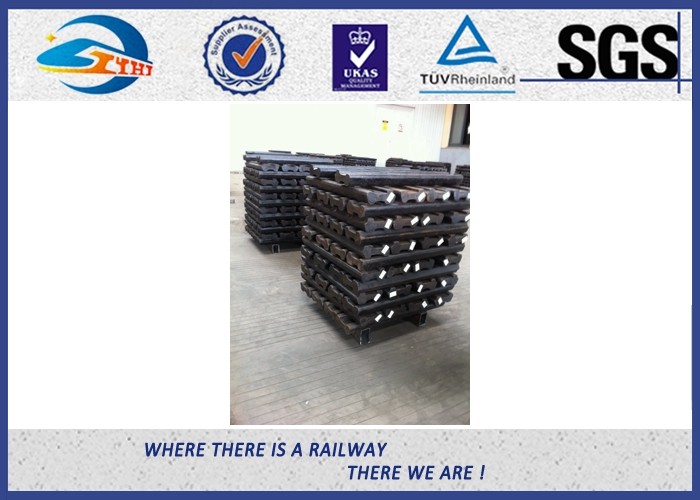

Packaging Details: 25kg/woven bag, 36bags/pallet, 24 pallent/container
Delivery Time: 25 to 40 days according to your order quantity
Payment Terms: L/C, T/T
Supply Ability: 10,000pcs per week
Contact Now
Detailed Product Description
Material: 50# Application: Rail Joints Bar
Surface: Plain, Oiled, Oxide Black, Color Painting Sample: Available
Customization: Acceptable Types: 4 Holes, 6 Holes
Technology: Forging

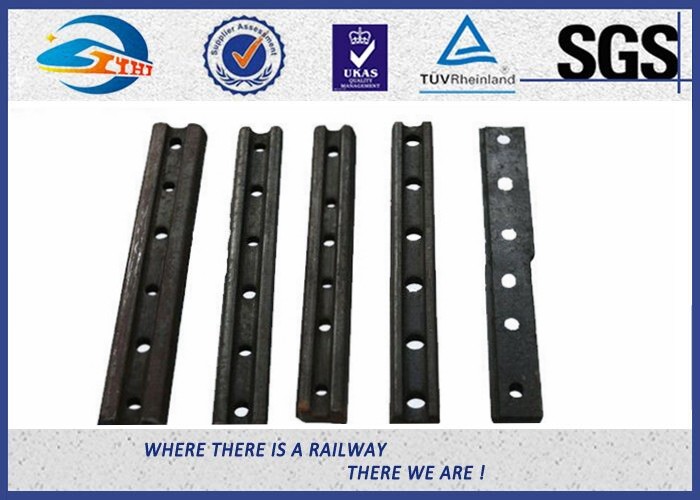

4 Holes And 6 Holes Railway Fish Plate For ASCE Tie Rail And Crane Rail With Dimensions





We offer 4 holed or 6 holed fish plate to suit 60 kg, UIC, 54 kg UIC, 52 kg UIC, 52 kg, 90A, 90R, 80A, 80'O', 88'O', 75R, 60R, 115 RE, 132 RE, 50R rails, etc.

In rail terminology, a fishplate, splice bar or joint bar is a metal bar that is bolted to the ends of two rails to join them together in a track. The name is derived from fish, a wooden bar with a curved profile used to strengthen a ship's mast.[1] The top and bottom edges are tapered inwards so the device wedges itself between the top and bottom of the rail when it is bolted into place.[2] In rail transport modelling, a fishplate is often a small copper or nickel silver plate that slips onto both rails to provide the functions of maintaining alignment and electrical continuity.







Combination/Compromise Fish Plates


We produce specially designed fish plates to join two different rail sections of rail tracks for various customers when they require them.



Tee Rail A B C D E Bar (")

Length

Bar weight (PR) Bar Punching Common Type
4-Hole 6-Hole FxGxHxGxF
12 lb. ASCE 2 4 - 5/8 57/64 16- 1/8 2.9 - 4 x 4 1/8 x 4 Splice
16 lb. ASCE 2 4 - 5/8 1- 1/16 16- 1/8 3.6 - 4 x 4 1/8 x 4 Splice
20 lb. ASCE 2 4 - 5/8 1- 11/64 16- 1/8 4.2 - 4 x 4 1/8 x 4 Splice
30 lb. ASCE 2 4 - 3/4 1- 25/64 16- 1/8 7.0 - 4 x 4 1/8 x 4 Splice
40 lb. ASCE 2- 1/2 5 - 7/8 1- 9/16 20 12.0 - 5 x 5 1/8 x 5 Angle F. T.
60 lb. ASCE 2- 1/2 5 - 1 1-115/128 20 27.2 - 5 x 5 1/8 x 5 Angle F. T.
80 lb. ASCE 2- 1/2 5 - 1- 1/16 2- 3/16 24 46.0 - 5 x 5 1/8 x 5 Angle F. T.
85 lb. ASCE 2- 1/2 5 - 1- 1/16 2- 17/64 24 47.3 - 5 x 5 1/8 x 5 Angle F. T.
85 lb. CP 2- 7/16 6- 1/2 - 1- 1/16 2- 11/32 22 43.6 - 6 1/2 x 5 x 6 1/2 Angle F. T.
100 lb. RE 2- 11/16 5- 1/2 - 1- 3/16 2- 45/64 22 51.9 - 5 1/2 x 5 1/2 x 5 1/2 Angle F. T.
100 lb. ARAA 2- 11/16 5- 1/2 - 1- 3/16 2- 3/4 22/33 53.5 80.3 5 1/2 x 5 1/2 x 5 1/2 Angle F. T.
100 lb. ASCE 2- 15/16 6 - 1- 3/16 2-65/128 24 63.2 - 5 x 5 1/8 x 5 Angle F. T.
115 lb. RE 3- 1/2 6 6 1- 3/16 2- 7/8 25/36 69.4 99.8 6 x 6x 7 1/8 x 6  x 6 Angle F. T.
132 lb. RE 3- 1/2 6 6 1- 5/16 3- 3/32 24/36 71.0 106.5 6 x 6x 7 1/8 x 6  x 6 Angle F. T.
136 lb. RE 3- 1/2 6 6 1- 5/16 3- 3/32 24/36 71.0 106.5 6 x 6x 7 1/8 x 6  x 6 Angle F. T.
CRANE RAIL
104 lb. CR 4 5 6 1 - 1/16 2 - 7/16 34 - 60.2 6 x 5 x 7 - 15/16 x 5x 6 Angle F. T
105 lb.  CR 4 5 6 15/16 2 -13/64 34 - 51.6 6 x 5 x 7 - 15/16 x 5x 6 Splice
135 lb. CR 4 5 6 1-  3/16 2- 15/32 34 - 57.8 6 x 5 x 7 - 15/16 x 5x 6 Splice
171 lb. CR 4 5 6 1-  3/16 2- 5/8 34 - 72.1 6 x 5 x 7 - 15/16 x 5x 6 Splice
175 lb. CR 4 5 6 1-  3/16 2-21/32 34 - 69.4 6 x 5 x 7 - 15/16 x 5x 6 Splice



Type

Length /Diameter

Weight(Kg)

Material

115RE

4 hole- 24″

17.04

45#



Chemical 'composition(%):

 C:0.42-0.50,

Mn:0.50-0.80,

Si:0.17-0.37,

Cr:≤0.25,

P:≤0.035,

S:≤0.035







50#



Chemical

composition(%):

C:0.62-0.70,

Mn:0.50-0.80,

Si:0.17-0.37,

Cr:≤0.25,

P:≤0.035,

S:≤0.035

115RE

6 hole -36″

25.56

132-136RE

4hole-24″

17.75

132-136RE

6hole-36″

26.63

UIC60

4 hole - 630/Ø26

18.07

UIC60

4 hole-600/ Ø 28

17.47

UIC60

4 hole  - 630/ Ø 25

18.1

UIC54

4hole

14.34

UIC54

6hole- 800

19.94

BS80A

4hole

6.5

BS90A

685.8 / Ø 26

13.23

BS90A

792.9/ Ø 26 .2

15.34

90/91LB

4 hole

18.08

90/91LB

6hole

19.9

50Kg

4hole

14.3

50Kg

6hole

19.5

BS75R

4hole

6.56

BS60A

4hole

5.61

S49

4 hole

9.71



6 Holes Railway Fish Plate For ASCE Tie Rail And Crane Rail fish bolt6 Holes Railway Fish Plate For ASCE Tie Rail And Crane Rail fish bolt6 Holes Railway Fish Plate For ASCE Tie Rail And Crane Rail fish bolt
