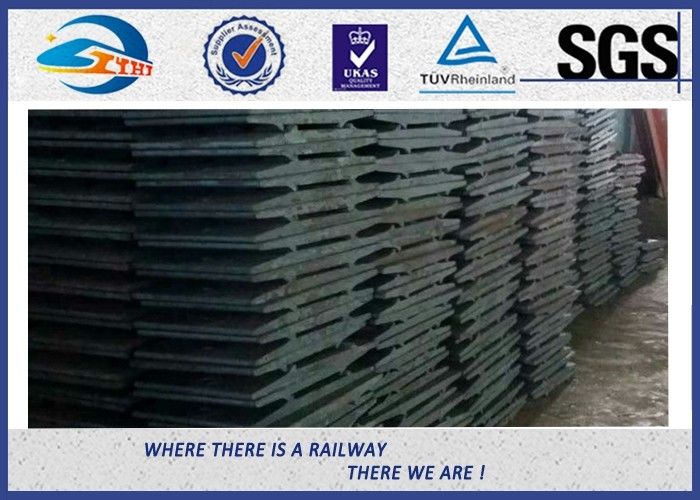

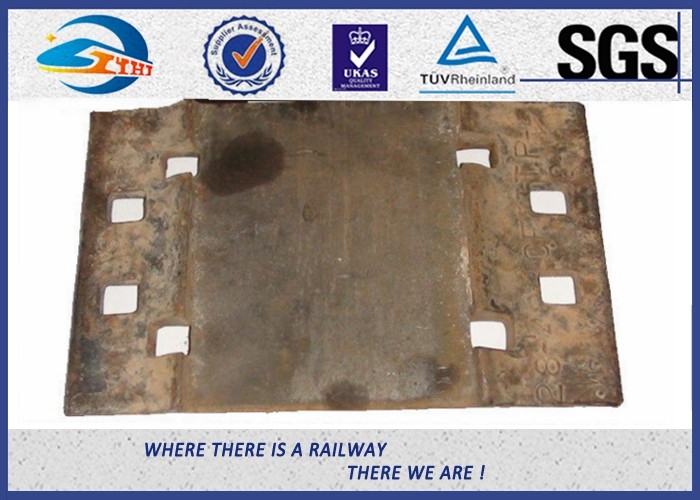

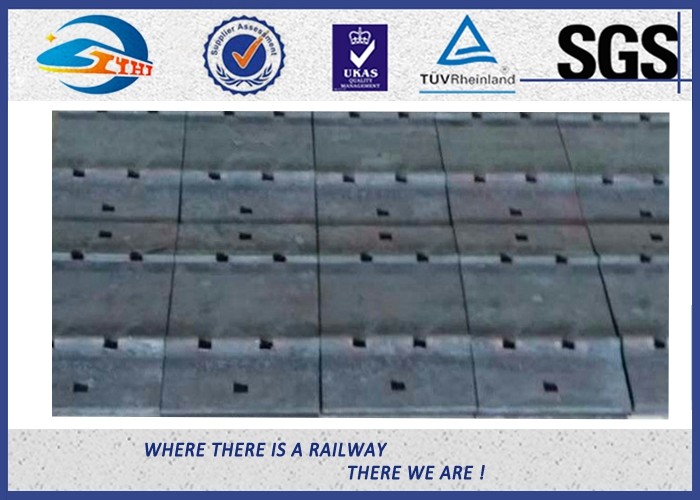

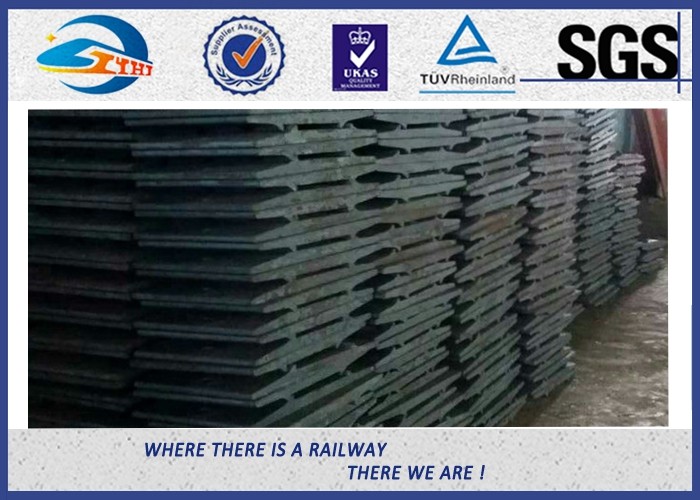

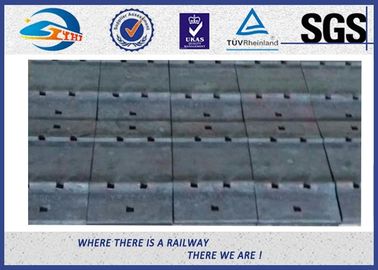

7 - 3/4"x 14" Hot Rolled Double Ribs Carbon Steel Railroad Tie Plate AREMA Standard

China 7 - 3/4"x 14" Hot Rolled Double Ribs Carbon Steel Railroad Tie Plate  AREMA Standard supplier
7 - 3/4"x 14" Hot Rolled Double Ribs Carbon Steel Railroad Tie Plate  AREMA Standard supplier 7 - 3/4"x 14" Hot Rolled Double Ribs Carbon Steel Railroad Tie Plate  AREMA Standard supplier 7 - 3/4"x 14" Hot Rolled Double Ribs Carbon Steel Railroad Tie Plate  AREMA Standard supplier 7 - 3/4"x 14" Hot Rolled Double Ribs Carbon Steel Railroad Tie Plate  AREMA Standard supplier

Large Image :  7 - 3/4"x 14" Hot Rolled Double Ribs Carbon Steel Railroad Tie Plate AREMA Standard

Product Details:

Place of Origin: China
Brand Name: ZHONGYUE
Certification: ISO9001
Model Number: AREMA

Payment & Shipping Terms:

Minimum Order Quantity: 500 tons
Price: usd 8-15 per pc
Packaging Details: Wooden pallets or wooden cases
Delivery Time: 1-3 Months
Payment Terms: T/T
Supply Ability: 800 tons per month
Contact Now
Detailed Product Description
Material: Carbon Steel Process: Hot Rolled
Standard: AREMA Size: 7-3/4"x14"
Specification: Double Ribs Application: USA, Canada, Mexico



7-3/4"x14" Hot Rolled Double Ribs Carbon Steel Railroad Tie Plate of AREMA Standard





These specifications cover steel tie plates for use in railroad track. Either low carbon or high carbon steel tie plates may be furnished.



Standard



The Railroad tie plate must subject to AREMA standard , UIC864-6 standard, or the equivalent.



Production Process



1. Raw material

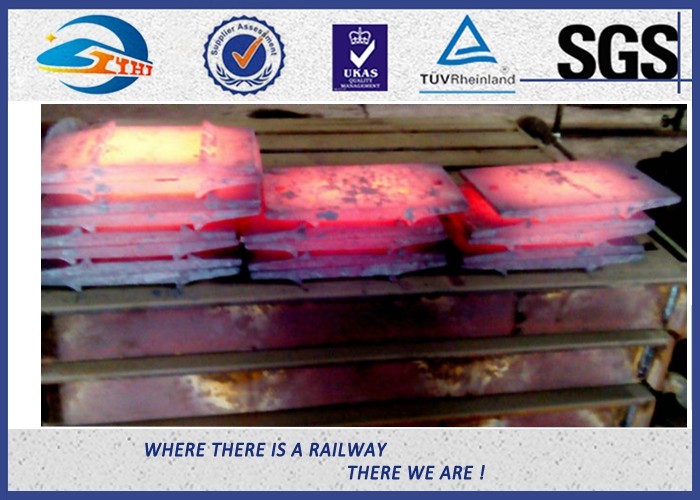

2. Hot rolled
3. Cutting into length
4. Drilling holes
5. Trimming
6. Inspection
7. Packing



7 - 3/4"x 14" Hot Rolled Double Ribs Carbon Steel Railroad Tie Plate  AREMA Standard





Materials





Element

Low Carbon steel

High carbon steel



Q235, S275JR, Q345

35#, 45#, 50#

Carbon

0.150 min to 0.349

0.350 to 0.850

Phosphorus

0.050 max

0.050 max

Sulfur

0.040 max

0.040 max





7 - 3/4"x 14" Hot Rolled Double Ribs Carbon Steel Railroad Tie Plate  AREMA Standard





Specification



Rail

Plate

AREMA

Rail Sections

Base

Widths

Plan

Number

Length

Inches

140RE, 136RE, 133RE, 132RE

6 inch

22

18

21

16

13

14-3/4

12

14

11

13

119RE, 115RE

5-1/2 inch

20

15

8

14

7

13

6

12

100RE

5-3/8 inch

3

12

2

11

90RA-A

5-1/8 inch

2

11

1

10

Note 1: Tie plates are double shoulder except for plan number 1 and 2 which are single  shoulder.

            All tie plate sections canted 1: 40.

            All tie plate sections have inclined ends.



Application



The Railroad tie plate are used with the wooden sleepers, fasten by the dog spike. There are 4, 5 ,6, 7 , or 8  square holes on the Railroad tie plate for the dog spike.  And sometimes it can be fastened by the screw spike , and the holes is changed to be round.



The double ribs tie plate are mainly used in USA, Canada, Mexico and some countries of South America. We have been provided many quantities of this tie plate to above countries.



7 - 3/4"x 14" Hot Rolled Double Ribs Carbon Steel Railroad Tie Plate  AREMA Standard



If you are interested in this railroad tie plate, please be free to contact me .  I will do my best to



make the best offer and service for you!





7 - 3/4"x 14" Hot Rolled Double Ribs Carbon Steel Railroad Tie Plate  AREMA Standard



Adhering to our quality first policy, ZHONGYUE pays great attention to quality control management on our tie plate. We have been granted ISO9001-2008 certificates and have received the production license of China's Railway Ministry on railway products. We have a full set of inspection instruments to ensure all our rail tie plates are of high quality and up to customers' requirements.

As a leading manufacturer of rail fastening based in China, ZHONGYUE also produces many other railway fasteners, such as track bolt, sleeper screw, rail joint bar, rail anchor, rail clip, elastic rail clip, SKL tension clamp, rail shoulder, and so on.
