Special Railroad Track Spikes Rail Fastening Grade 4.8 Black Lock Spike

Basic Information
Place of Origin: China
Brand Name: ZhongYue
Certification: ISO9001:2015
Model Number: SUYU98
Minimum Order Quantity: 10000pcs
Price: Negociable
Packaging Details: 25KG double-layer woven bag with fumigation and free wooden pallet
Delivery Time: 15-30 Days After Receiving Purchasing Order
Payment Terms: T/T, 30% in advance
Supply Ability: 100 TONS / WEEK
Product: Railroad Spike Material: Q235
Grade: 4.8 Color: Black
OEM: Support OEM H.S. Code: 7318110000
High Light:

railway dog spikes

,

boat spikes

Special Railroad Track Spikes Rail Fastening Grade 4.8 Black Lock Spike





ZY specialize in producing rail fastening , track spikes are our main products, which is in accordance to DIN/GOST/ AREMA /GB/TB standard , below is some of our main products .



1. Track spikes are manufactured to ARMEA specifications in both soft steel and high tensile grade

Size

Weight(Kg)

Square 3/8"×3"

0.069

Square 3/8"×3-1/2"

0.078

Square 1/2"×4-1/2 "

0.165

Square 5/8"×5-1/2"

0.34

Square 5/8"×6"

0.375



With regard to the high tensile grade of the USA AREMA specification, the material is the medium carbon steel; therefore, the chemical composition and mechanical properties should be as follows:

C

Mn

Si

P

S

0.17 - 0.25%

0.9 - 1.35%



0.35 Max



0.04% Max



0.05 Max





2. Rail spikes are used for BS80LBS.75LBS & 90LBS rails , in addition to our normal products , their shape and dimension can be produced and designed according to the specification of our customers . Their size can be 12mm .13mm.16mm , the length can be adjusted to client requirement.



3. Special rail spike are also available , such as 12×12 ×120. 14×14×140 .16×13×150.



4. We also can produce the lock spike with many sizes according to our customers' requirement.





ZY can supply a range of rail sleeper spikes manufactured to international standards according to BS, ASTM and DIN, among others. ZY has extensive experience in the rail industry and a high level of expertise in this specialized field. ZY can manufacture any quantity, big or small, and offers a range of finishes including hot dipped galvanized, black, sherardized or self color for the budget conscious.



Rail spikes are used to fasten sole plates and ribbed base plates to wooden sleepers. direct fastenings of rails on concrete and wooden sleepers. Characteristically, the sleeper screw thread may only be produced in a hotforming operation. The different shapes of the head correspond to the pass form of the respective spanner used for fastening and loosening of the rail spikes.



As a leading manufacturer of rail fastening in China , ZY also can produce many other railway fasteners , such as track bolt . Sleeper screw . rail anchor .rail joint bar . tie plate .rail clips ,elastic rail clip .SKL tension clamp .rail shoulder and so on .



Sticking to the “quality first” policy, SUYU pays great attention to quality control management. We have granted ISO9001-2000 certificates and have got the production license of China’s Railway Ministry on railway products.  We have a full set of inspection instruments which makes sure all the products produced by us should be of high quality and up to customers’ requirements.



Technical Specification

Brand ZY
Name Rail Spike
Size 16x16xL 16x16xL 5/8”x5/8”xL 3/8”x3/8”xL 16x16x170
Grade 4.6 4.6 A370 ASTM A65 Gr1,Gr2 4.6
Material Q235 low carbon steel Q235 Q235 Steel type
low carbon
Surface plain (oiled)
Standard refers GB/T 1346 GOST5812 AREMA AREMA Ss-EN10025

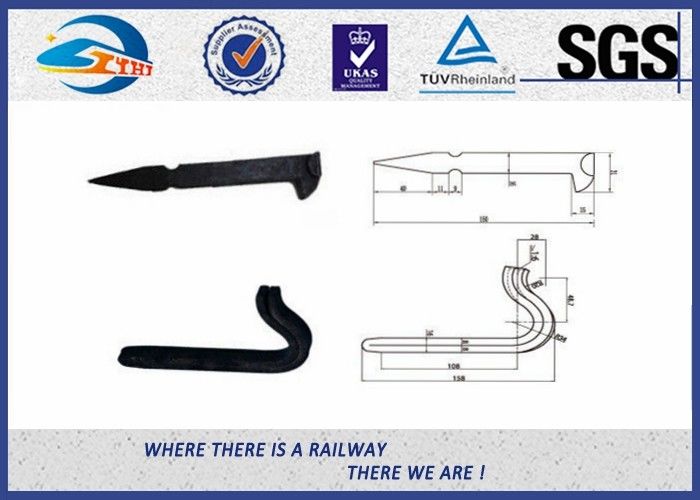

Special Railroad Track Spikes Rail Fastening Grade 4.8 Black Lock Spike 0

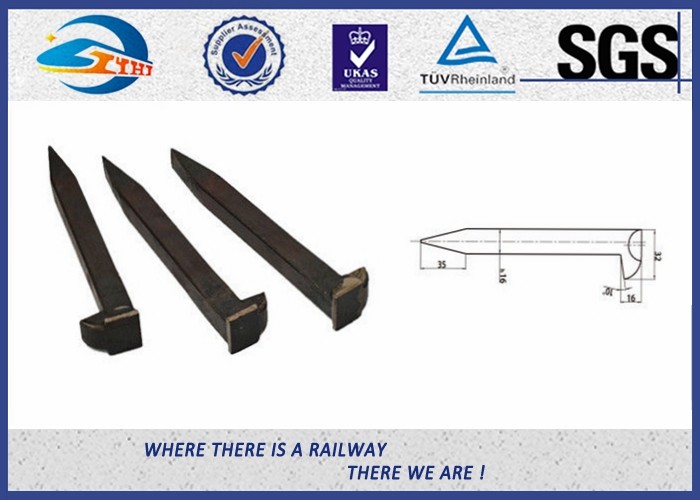

Special Railroad Track Spikes Rail Fastening Grade 4.8 Black Lock Spike 1



Production Line

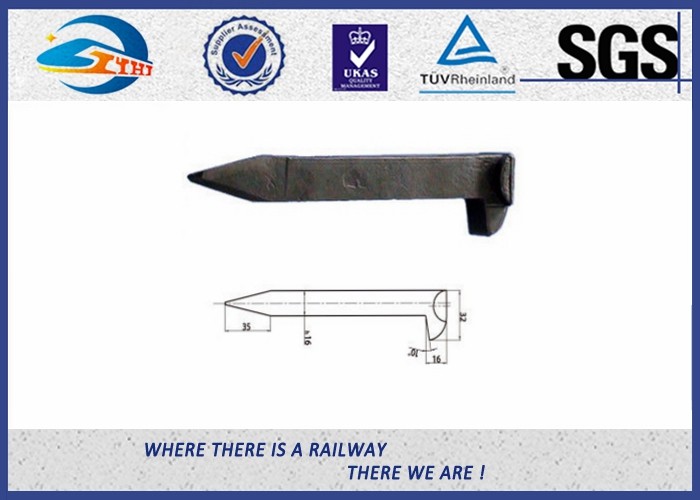

Special Railroad Track Spikes Rail Fastening Grade 4.8 Black Lock Spike 2



Inspection

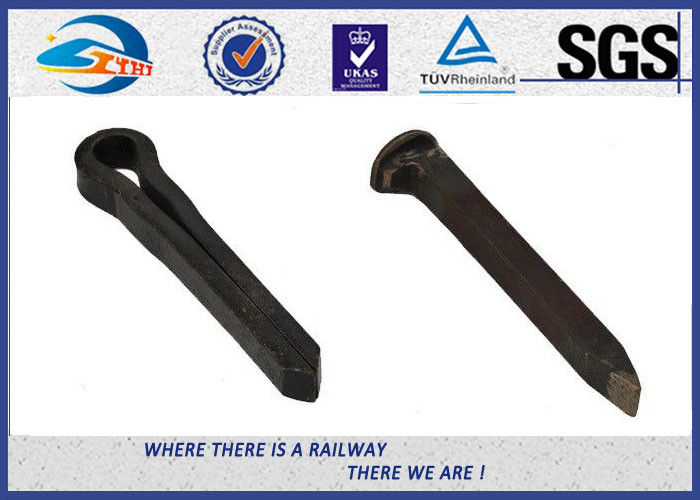

Special Railroad Track Spikes Rail Fastening Grade 4.8 Black Lock Spike 3
