Clamp Plain / Black / Galvanize GB 1348-88 KPO Rail Clips in Railroad

Basic Information
Place of Origin: China
Brand Name: ZHONGYUE
Certification: ISO9001
Model Number: KPO
Minimum Order Quantity: 5000 pcs
Price: negotiable
Packaging Details: 25kg/woven bag, 36bags/pallet, 24pallets/container
Delivery Time: 20- 30 days according to your order quantity
Payment Terms: L/C, T/T, Western Union
Supply Ability: 600,000 pcs per month
Contact Now
Material: Q235 / QT500-7 / ZG35 Surface: Plain, Oiled, Oxide Black, Wax, HDG
Customization: Acceptable Market: Africa
High Light:

fastening plate

,

din rail clips

KPO Rail Clips Railway Clamp Plain / Black / Galvanize Fastener in Railroad



Specification:



Item Name Railway  Rail Clamp
Usage Rail Fastening
Material Iron Steel, Cast Iron
Surface Treatment Bluing, Plain Oiling, Color Painting, etc
Documents with Delivery Mechanical Properties, Chemical Composition, All Sizes Reports
Certification ISO, SGS, TUV

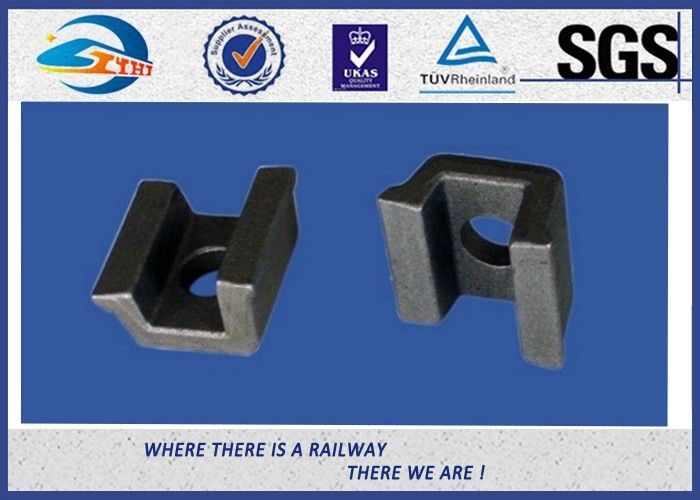

Product Show

Clamp Plain / Black / Galvanize GB 1348-88 KPO Rail Clips in Railroad 0



Material

  1. Forging: Q235;
  2. Cast steel:  ZG35;
  3. Cast iron: TQ500-7
Grade 4.6
Material Q235
Mechanical Tensile strength:  ≥ 400Mpa
Yield strength: ≥ 240Mpa
Elongation: ≥ 22%
Cold bending: 90 degree
without crack



Name QT500-7 QT450-10 QT400-15
Standard GB 1348-88  GB 1348-88  GB 1348-89
Chemical composition(%) C:3.60-3.80 C:3.40-3.90 C:3.50-3.60
Mn:≤0.6 Mn:0.2-0.5 Mn:≤0.5
Si:2.50-2.90 Si:2.70-3.00 Si:3.0-3.2
P:≤0.08 P:≤0.07 P:≤0.07
S:≤0.025 S:≤0.03 S:≤0.02
Tensile Strength ≥500 Mpa ≥450 Mpa ≥400 Mpa
Yield Strength ≥320 Mpa  ≥310 Mpa  ≥250 Mpa
Elongation(%) ≥7  ≥10 ≥15
Hardnrss 170~230HB  160~210HB  130~180HB
Metallographic organization ferrite + pearlite graphite + ferrite + pearlite ferrite





Surface Treatment

  1. plain (oiled)
  2. color paint
  3. oxide Black (most choice)
  4. galavazing
  5. DHG

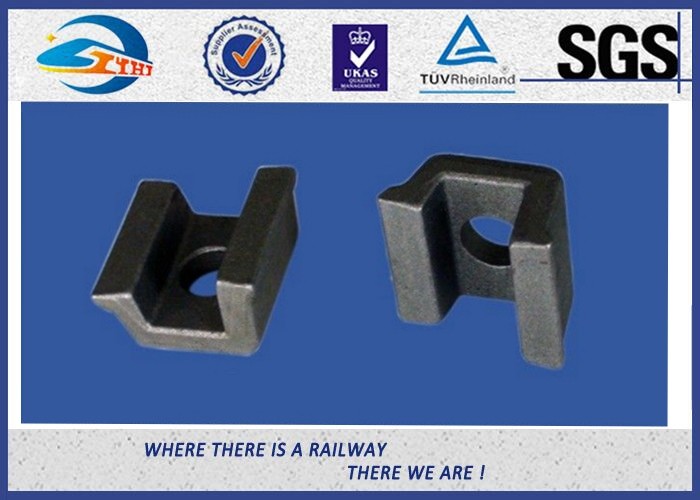

Clamp Plain / Black / Galvanize GB 1348-88 KPO Rail Clips in Railroad 1



Inspection machine

  1. Brinell Hardness Tester
  2. Carbon and Sulfur Analyzer
  3. Rockwell Hardness Machine
  4. Automatic Impact Testing Machine
  5. Metallographic Microscope
  6. Automatic High-speed Analyzer
  7. Fatigue Testing Machine
  8. Metallographic Specimen Polishing Machine
  9. Metallographic Specimen Pointing Machine

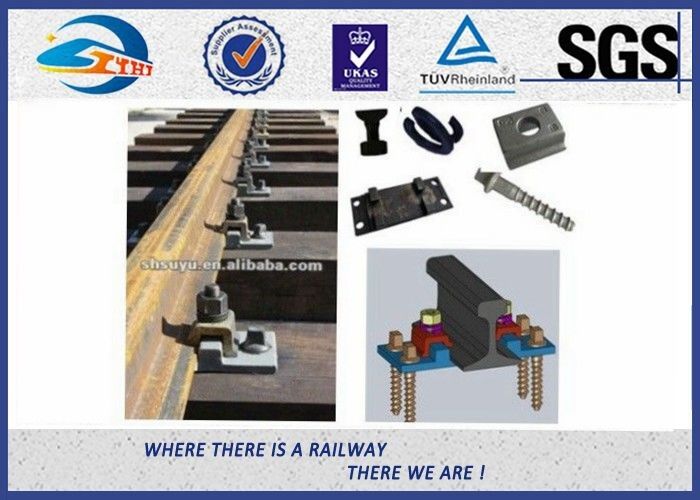

Function Part

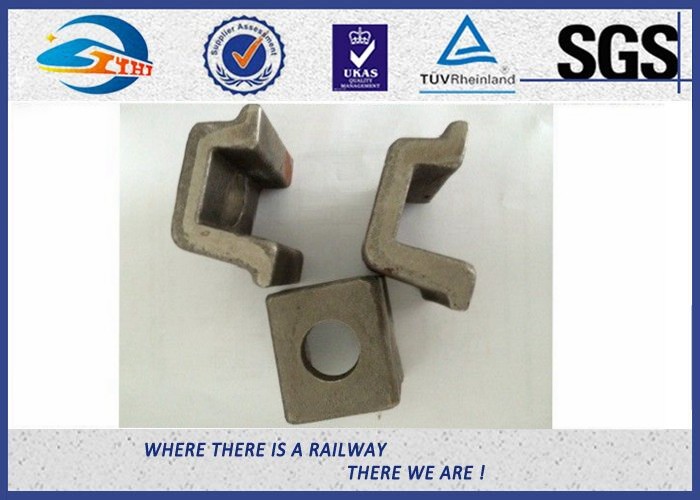

Clamp Plain / Black / Galvanize GB 1348-88 KPO Rail Clips in Railroad 2

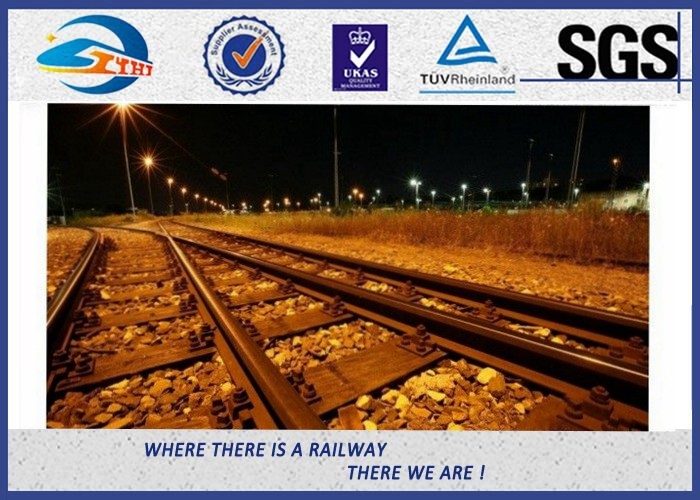

Application



Clamp Plain / Black / Galvanize GB 1348-88 KPO Rail Clips in Railroad 3



Quotation necessity ( the more, the better )

  1. Drawing with full size
  2. Material
  3. Surface Treatment
  4. Order quantity

If you have any futher question or request, welcome to contact me.


Contact: Janet Jiang zy15@zyrail.com
