Plain Steel Crane Rail DIN536 900A With The Length 10 -12M

Basic Information
Place of Origin: Kunshan City, Jiangsu Province, China
Brand Name: ZHONGYUE
Certification: SGS, ISO9001:2008, TUV
Model Number: SUYU53
Minimum Order Quantity: 10 tons
Price: 1000-1400 USD per ton
Packaging Details: Steel Strapping, Ship By Container Or Bulkload
Delivery Time: 20-35 days after placing the formal order
Payment Terms: T/T
Supply Ability: 3000 tons per month
Product: Crane Rail DIN536 Materal: 900A
Length: 10-12M Color: Plain
Types: A65, A75, A100
High Light:

railroad steel rail

,

steel rail track

Plain Steel Crane Rail DIN536 900A With The Length 10 -12M



The Rail Solution for Crane and Transfer Car Runways



For over 10 years SUYU has been providing soft-mount rail solutions for crane rail and track for all types

of rail-mounted equipment, especially overhead cranes. Rail is the fundamental component of any system

because it is the surface in direct contact with the mobile machine.Whether sections of DIN rail, MRS rail,

ASCE rail, Vignole Rail, JIS rail, North American Crane Rail, or any other profile are needed, SUYU can

help you choose the right rail section for your application. We can supply crane rail and track in all available

grades, such as Control Cooled, Head Hardened, High Carbon, DIN 536 Grades and many others.



Rail and Track must satisfy the following criteria:

1. Reliability

2. Economy

3. Life Expectancy



SUYU is your ideal partner for rail systems. Backed by our legendary engineering support, years of superior

customer service and miles of installed rail around the globe, we can leverage our relationships with the

various rail mills throughout the world to help you choose the right rail section, length, hardness and fastenings,

(rail clips or clamps) to satisfy the needs of your applications and customers.Our access to vast inventories

of rail at numerous locations will assure you get the right rail, right on time, right where you need it.



Crane Rail DIN536 Specifications

Size Dimension(mm) Weight(kg/m) Material Length(m)
Head(mm) Height(mm) Bottom(mm) Web(mm)
A65 65 75 175 38 43.1 900A 10-12
A75 75 85 200 45 56.2 900A 10-12
A100 100 95 200 60 74.3 900A 10-12





QU Series Specifications

Size Dimension(mm) Weight(kg/m) Material Length(m)
Head(mm) Height(mm) Bottom(mm) Web(mm)
QU70 70 120 120 28 52.8 U71Mn 12
QU80 80 130 130 32 63.69 U71Mn 12
QU100 100 150 150 38 88.96 U71Mn 12
QU120 120 170 170 44 118.1 U71Mn 12

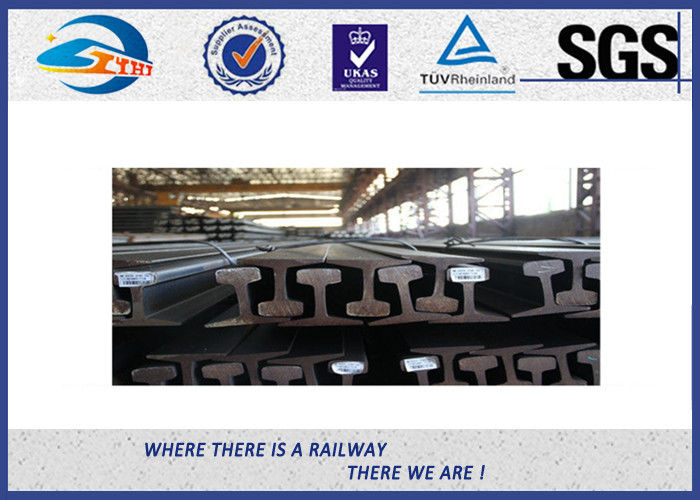

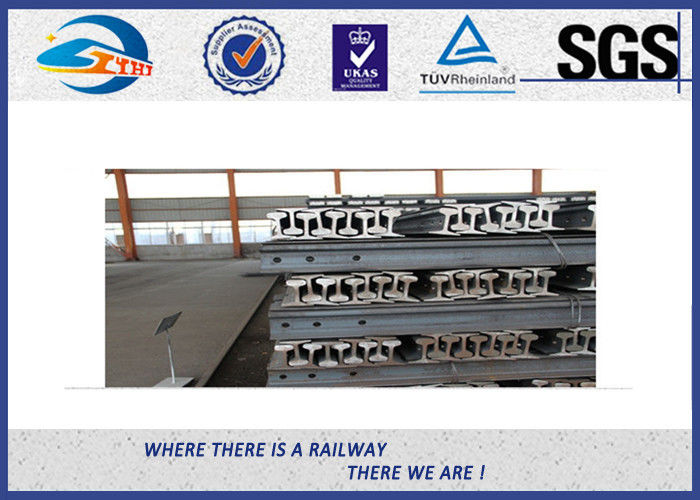

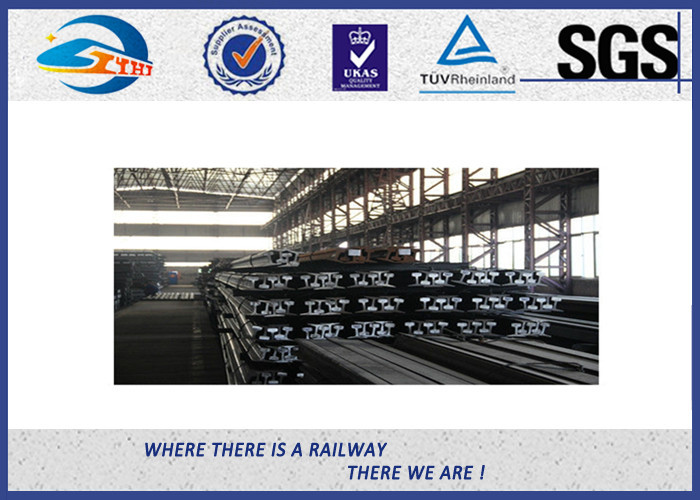

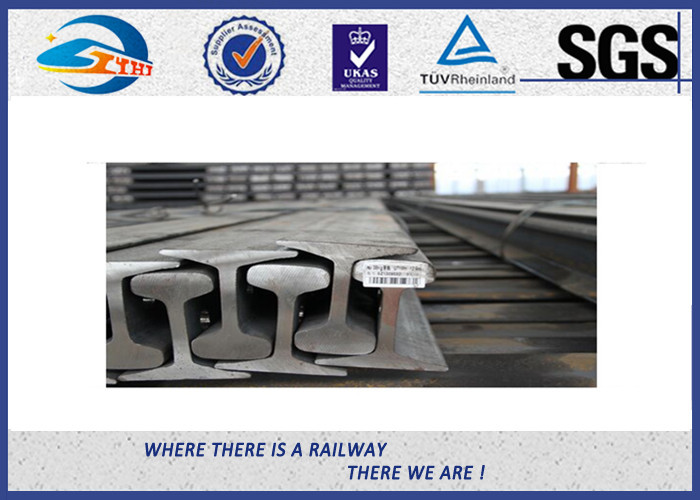

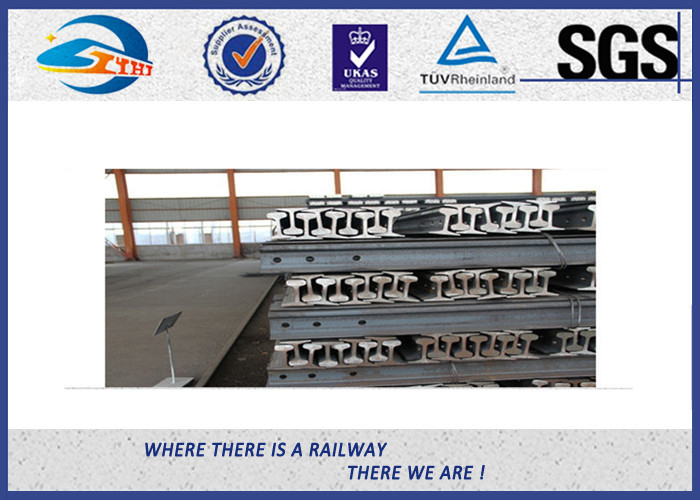

Photos For Reference

Plain Steel Crane Rail DIN536 900A With The Length 10 -12M 0

Plain Steel Crane Rail DIN536 900A With The Length 10 -12M 1

Plain Steel Crane Rail DIN536 900A With The Length 10 -12M 2





Production Process

Plain Steel Crane Rail DIN536 900A With The Length 10 -12M 3



Factory

Plain Steel Crane Rail DIN536 900A With The Length 10 -12M 4

  Certificate

Plain Steel Crane Rail DIN536 900A With The Length 10 -12M 5Plain Steel Crane Rail DIN536 900A With The Length 10 -12M 5Plain Steel Crane Rail DIN536 900A With The Length 10 -12M 5Plain Steel Crane Rail DIN536 900A With The Length 10 -12M 5Plain Steel Crane Rail DIN536 900A With The Length 10 -12M 9

Company

Plain Steel Crane Rail DIN536 900A With The Length 10 -12M 10
