Place of Origin: | Kunshan City, Jiangsu Province, China |
---|---|
Brand Name: | ZhongYue |
Certification: | ISO9001:2015 |
Model Number: | SUYU26 |
Minimum Order Quantity: | 10000pcs |
Price: | Negociable |
Packaging Details: | 25KG double-layer woven bag with fumigation-free wooden pallet |
Delivery Time: | 20-35 days after placing the order |
Payment Terms: | T/T, 30% in advance |
Supply Ability: | 150 tons per week |
Product: | Black Oxide Track Spike | Material: | Q235 |
---|---|---|---|
Surface: | Oxide Black | Application: | Used On Wooden Sleepers |
Mateial Standard: | Ss-EN10025 | ||
High Light: | rail road spikes,railway dog spikes |
Low Carbon Steel Black Oxide Track Spike Fastening Wooden Sleeper Ss-EN10025
General Intoduction of Track Spike
The spikes used to fasten T-shaped railroad track to wooden ties have an L-shaped head and a square shank. The bottom of the head is sloped to match the slope of the flange of a rail. The tip is wedge-shaped, not pointed. The wedge is driven into the tie across the grain, that is, parallel to the track.
Its square cross section gives a railroad spike much higher holding strength than a fastener having the same amount of metal but a circular cross section has; roughly speaking, about 50% more. A spike with the wedge driven across the grain will have about twice as much holding power as one driven with the grain. Early experiments showed that pulling out a 9/16″ × 9/16″ spike driven 4¼ inches into dry cedar required on average a force of 857 pounds. In seasoned oak, another experimenter needed 4281 pounds.
Current standards for track spikes define two grades: 1 (soft) and 2 (high carbon). The stronger high carbon spikes must be marked “HC”.
Dimensions
Length under head (inches) |
Width of shank side (inches) |
Number in a 200-pound keg |
---|---|---|
5½ | 9/16 | 360 |
5 | 9/16 | 405 |
4½ | 9/16 | 460 |
5 | ½ | 505 |
4½ | ½ | 535 |
4 | ½ | 605 |
3½ | ½ | 670 |
4½ | 7/16 | 690 |
4 | 7/16 | 780 |
3½ | 7/16 | 890 |
4½ | 3/8 | 780 |
4 | 3/8 | 1025 |
3½ | 3/8 | 1250 |
3 | 3/8 | 1380 |
2½ | 5/16 | 1650 |
Product Specifications
Grade | 4.6 | 4.6 | A370 | ASTM A65 Gr1,Gr2 | 4.6 | 4.6 | ASTM A65 Gr1,Gr2 | 4.6 | 4.6 |
Material | Q235 | low carbon steel | Q235 | Q235 | Steel type | ||||
low carbon | low carbon | low carbon | SS41 | low carbon steel | |||||
Surface | plain (oiled) | ||||||||
Standard refers | GB/T 1346 | GOST5812 | AREMA | AREMA | Ss-EN10025 | BS70R, BS60R | AREA |

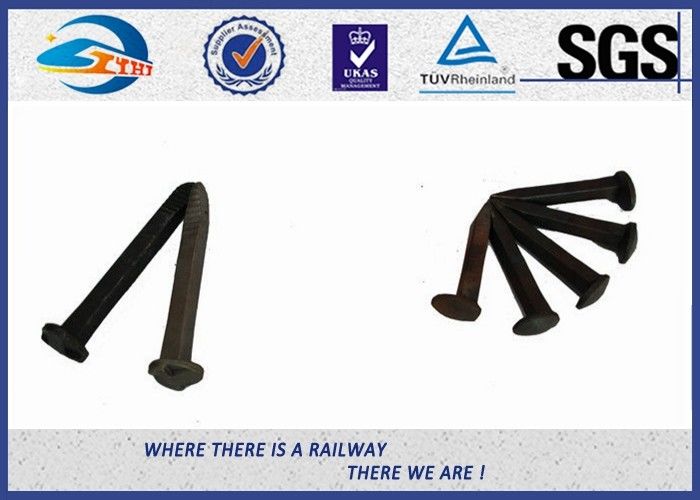

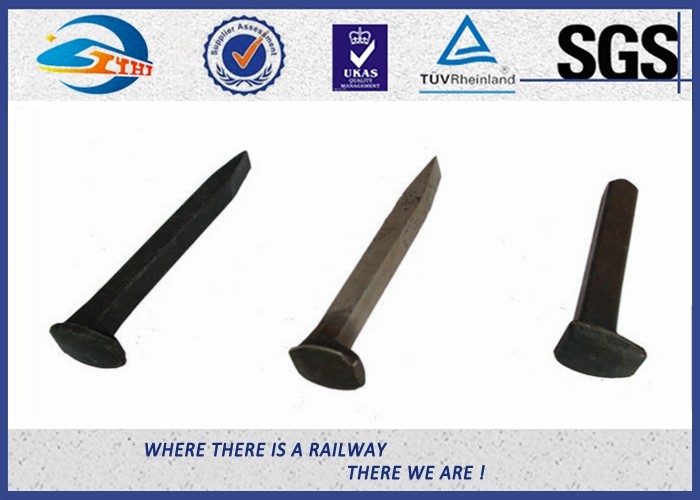

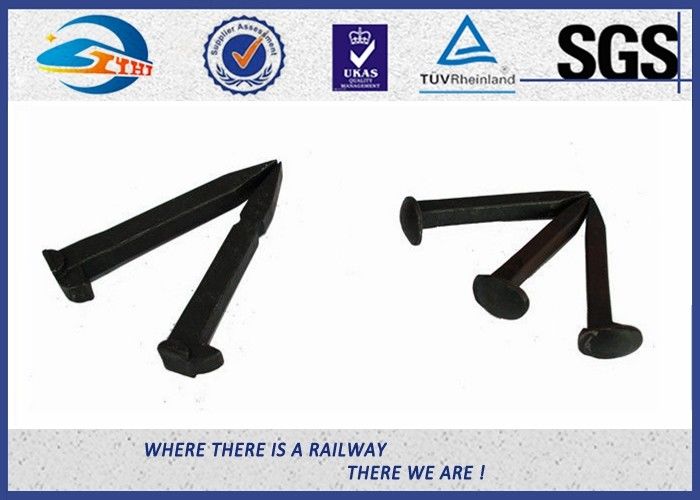

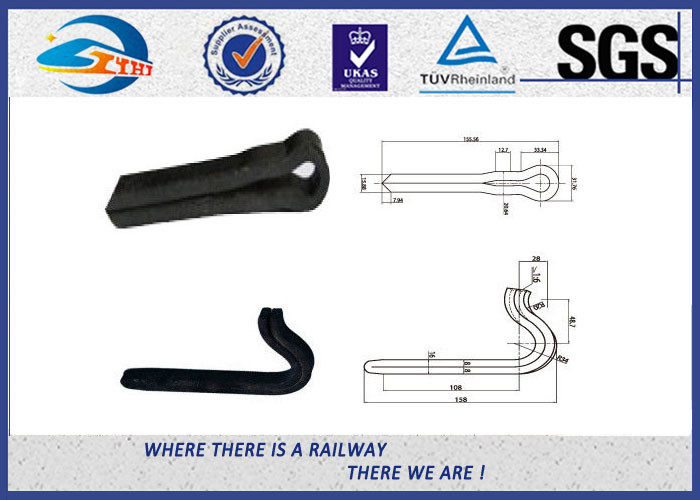

Photos for Reference
