Oiled Casting Weld Rail Shoulder for Railway Fastenings BS100lbs

China Oiled Casting Weld Rail Shoulder for Railway Fastenings BS100lbs supplier
Oiled Casting Weld Rail Shoulder for Railway Fastenings BS100lbs supplier Oiled Casting Weld Rail Shoulder for Railway Fastenings BS100lbs supplier Oiled Casting Weld Rail Shoulder for Railway Fastenings BS100lbs supplier

Large Image :  Oiled Casting Weld Rail Shoulder for Railway Fastenings BS100lbs

Product Details:

Place of Origin: China
Brand Name: ZHONGYUE
Certification: ISO/SGS/TUV
Model Number: Weld-on Shoulder

Payment & Shipping Terms:

Minimum Order Quantity: 1000 pcs
Price: negotiation
Packaging Details: Export Carton or as customer requirement
Delivery Time: 7 days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 30,000pcs per month
Contact Now
Detailed Product Description
Product Name: Weld-on Shoulder Application: Railway
Grade: 4.6, 5.6, 8.8, 10.9 Material: QT400-15
Surface: Plain (oiled), Oxide Black, Zinc, HDG, Wax, Bitumen, Dacromet Standard: ISO/SGS/TUV
Length: Acc To Drawings Warranty: 3 Years

Oiled Casting Weld Rail Shoulder for Railway Fastenings BS100lbs​



Brand

Rail shoulder /Casting Shoulder/Weld-on Shoulder

Type

For rail UIC54, UIC60, 115RE,50kg rail, 60kg rail,BS80lbs, BS100lbs

 Or the type by customers’ drawings

Material

QT500-7 (GGG50)

QT450-10(GGG45)

QT400-15(GGG40)

Chemical composition(%)

C:3.60-3.80, Mn:≤0.6, Si:2.50-2.90, P:≤0.08, S:≤0.025

C:3.40-3.90,

Mn:0.2-0.5, Si:2.70-3.00, ,P:≤0.07, S:≤0.03

C:3.5-3.60,

Mn: ≤0.5,

Si:3.00-3.20 ,

P:≤0.07, S:≤0.02

Surface

plain (oiled)

Oiled Casting Weld Rail Shoulder for Railway Fastenings BS100lbs

Zhongyue specialize in producing rail fastening , rail shoulders are our main products , they are produced both in casting and forging , below is some of our main products .

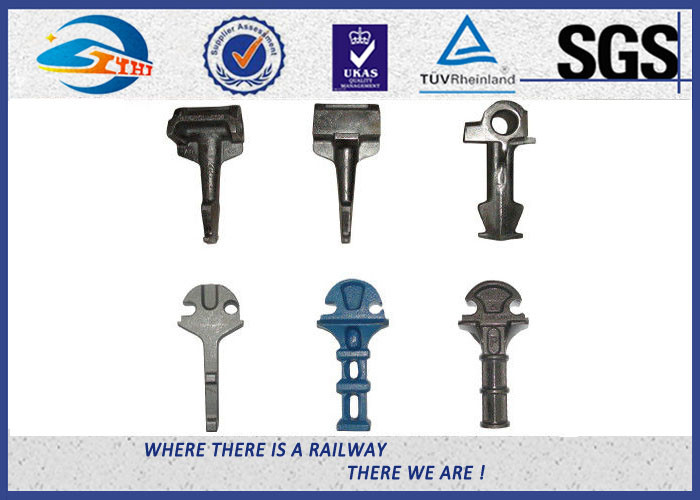

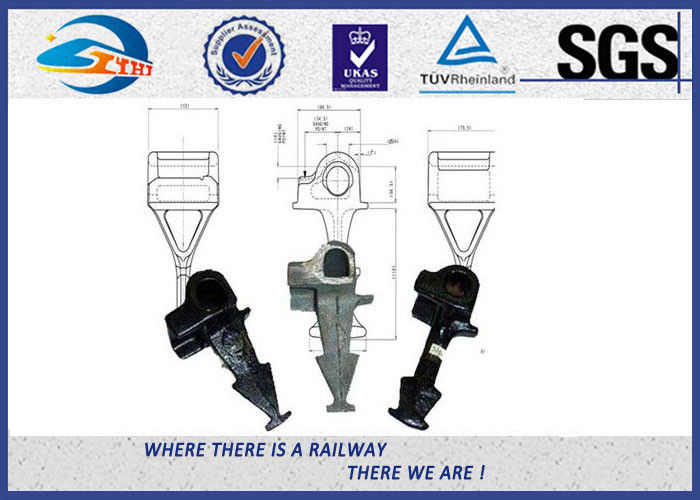

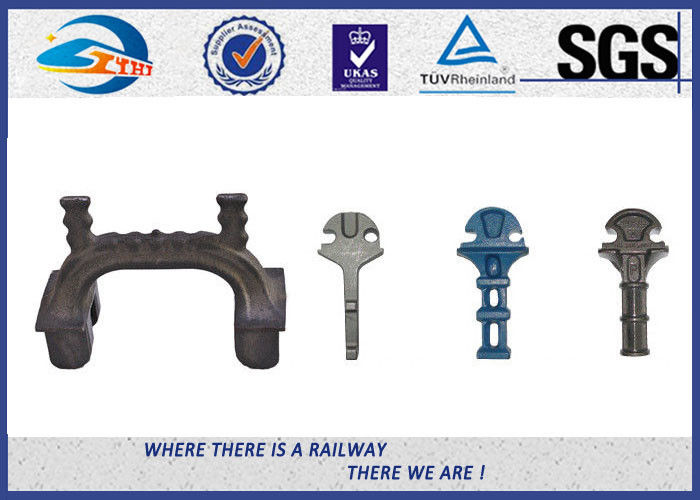

1. Casting shoulders are pressed in concrete sleeper and assembly with E clip in order to fasten the rail , the normal material we use is casting iron , the mechanical property and chemical composition are below :

Material

Tensile strength(Mpa)

Yield strength(Mpa)

Elongation(%)

QT400-15(GGG40)

400

250

15

QT450-10(GGG45)

450

310

10

QT500-7 (GGG50)

500

320

7







C

Si

Mn

P

S

QT400-15

3.6-.36

3.0-3.2

0.5

0.07

0.02

Qt450-10

3.4-3.9

3.7-3.0

0.5

0.07

0.03

QT500-7



3.4-3.8



2.5-2.9



0.6



0.08



0.025





2. Rail shoulders are produced by hot forging , which used together with clip bolt and special rail clip to fix the rail , the material can be low carbon steel and mid carbon steel according to our customers' requirement .



3. Weld-on shoulder is used for the typical position of rail , it is welded on flat steel plate instead of the standard tie plate , which produced according to AREA standard .



As a leading manufacturer of rail fastening in China , SUYU also can produce many other railway fasteners , such as track bolt . Sleeper screw . rail anchor .rail joint bar . tie plate .rail clips ,elastic rail clip .SKL tension clamp and so on .



Sticking to the “quality first” policy, ZHONGYUE pays great attention to quality control management. We have granted ISO9001-2000 certificates and have got the production license of China’s Railway Ministry on railway products.  We have a full set of inspection instruments which makes sure all the products produced by us should be of high quality and up to customers’ requirements.

Oiled Casting Weld Rail Shoulder for Railway Fastenings BS100lbs



Oiled Casting Weld Rail Shoulder for Railway Fastenings BS100lbs





Oiled Casting Weld Rail Shoulder for Railway Fastenings BS100lbs

As a leading manufacturer of rail fastening in China , SUYU also can produce many other railway fasteners , such as track bolt . Sleeper screw . rail anchor .rail joint bar . tie plate .rail clips ,.rail shoulder and so on .



Sticking to the “quality first” policy, SUYU pays great attention to quality control management. We have granted ISO9001-2000 certificates and have got the production license of China’s Railway Ministry on railway products.  We have a full set of inspection instruments which makes sure all the products produced by us should be of high quality and up to customers’ requirements.
