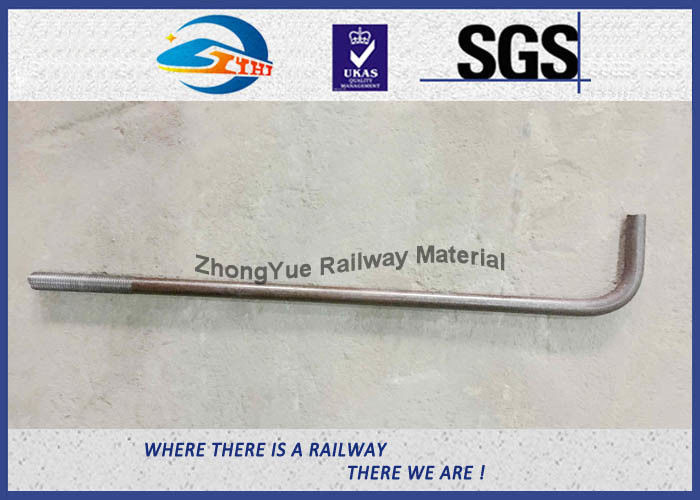

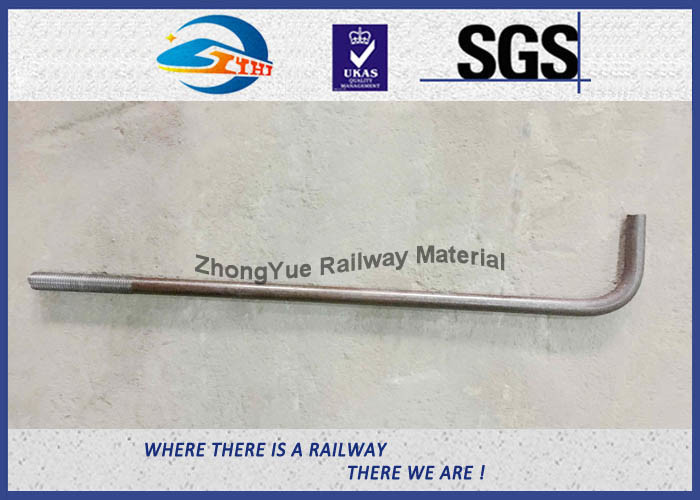

Hot Forging Anchor Railway Bolt DIN ASTM Standard L Bolt J Bolt Y Bolt

Basic Information
Place of Origin: China
Brand Name: ZhongYue
Certification: ISO9001:2015
Model Number: L type, Y type, J type
Minimum Order Quantity: 5000pcs
Price: Negociable
Packaging Details: in woven bags on wooden pallet
Delivery Time: 30 days after order
Payment Terms: T/T, 30% in advance
Supply Ability: 1,000,000pcs per month
Material: Q235, 35#,45#,40Cr Grade: 5.8, 8.8
Surface Treatment: Plain (oiled), Oxide Black, Zinc, HDG, Wax, Bitumen, Dacromet, Sherardizing Type: L Type, Y Type, J Type
Standard: UIC864-2
High Light:

hexagon head bolt

,

steel bolts and nuts



Anchor Bolt J





Other Name:

Anchor Bolt, Railway Bolt, Special Bolt



Standard:

DIN, JIS, ISO, ANSI, ASTM, BS, AS



Application:



Railway, Mining, Bridge, Boat, Construction etc.







Specifications:

Grade:4.6/4.8/5.6/5.8/8.8/10.9/12.9

Dimensions: 5/8" ,3/4" ,7/8", 1", 1 1/8",1 1/4",1 3/8",1 1/2", 1 5/8", 1 3/4", 1 7/8", 2"



Brand ZhongYue
Name Anchor bolt
Type HS26/HS32
L Type, Y Type, J Type
Or the type by customers’ drawings
Grade 4.6 5.6 8.8 10.9
Material Q235 35# 45# 40Cr
Mechanical properties Tensile strength: ≥400Mpa Tensile strength:≥500Mpa Tensile strength:≥800Mpa Tensile strength:≥1000Mpa
Yield strength:≥240Mpa Yield strength:≥300Mpa Yield strength:≥640Mpa Yield strength:≥900Mpa
Elongation:22%min Elongation:20%min Elongation:12%min Elongation:9%min
Cold bending: 90 degree without crack Cold bending: 90 degree without crack Cold bending: 90 degree without crack Cold bending: 90 degree without crack
Surface plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing
Standard refers UIC864-2



Hot Forging Anchor Railway Bolt DIN ASTM Standard L Bolt J Bolt Y Bolt 0



Production Procedure



Raw material —— Wire drawing —— Cutting the wire rod —— forming the head —— cutting Edge —— Heat Treatment —— Surface treatment —— Final inspection —— Packaging —— Delivery



Hot Forging Anchor Railway Bolt DIN ASTM Standard L Bolt J Bolt Y Bolt 1





Surface Treatment


1.plain (oiled)
2.color paint
3.Black Oxide
4.Zinc Plate
5.Hot Dip Galvanized
6.bitumenizing
7.wax
8.phosphatiert





Sale Range
1.Rail fastening system
2.Dog spike / Screw spike
3.Bolts & Nuts
4.Elastic clamp
5.Rail anchor
6.Rail shoulder
7.Fish plate
8.Tie plate
9.Plastic / Rubber parts
10.Brake pad
11.Steel rail







Hot Forging Anchor Railway Bolt DIN ASTM Standard L Bolt J Bolt Y Bolt 2



Inspection machine

1. Brinell Hardness Tester

2. Carbon and Sulfur Analyzer

3. Rockwell Hardness Machine

4. Automatic Impact Testing Machine

5. Metallographic Microscope

6. Automatic High-speed Analyzer

7. Fatigue Testing Machine

8. Metallographic Specimen Polishing Machine

9. Metallographic Specimen Pointing Machine

Hot Forging Anchor Railway Bolt DIN ASTM Standard L Bolt J Bolt Y Bolt 3



Our Company

    Established in 2013, ZY Railway has become one of the largest manufacturers of Railway fasteners in China. Our products are manufactured according to international standards such as ASTM, DIN, BS, JIS, AS, NF, ISO,GOST and GB. They are inspected frequently by BV, SGS, and ABS. We have been granted ISO9001:2008 certificate and supply products to famous companies like VAE, Hilti,Vossloh etc. We are a qualified supplier of Canada railway, Kazakhstan railway, American railway, Zambia railway, Thailand railway, Indonesia railway, Malaysia railway, Sweden railway, New Zealand railway, South Africa railway etc.



     According to our quality first policy, ZY pays a lot attention to quality control management. We have been granted ISO9001-2008 certificates and received the production license of China's Railway Ministry on railway products. We have a full set of inspection instruments to ensure all our railway bolt products are of high quality and up to customers' requirements.
